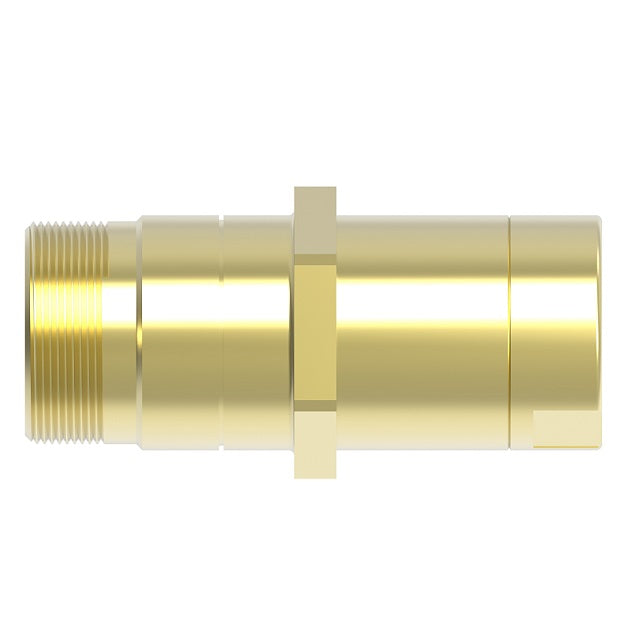

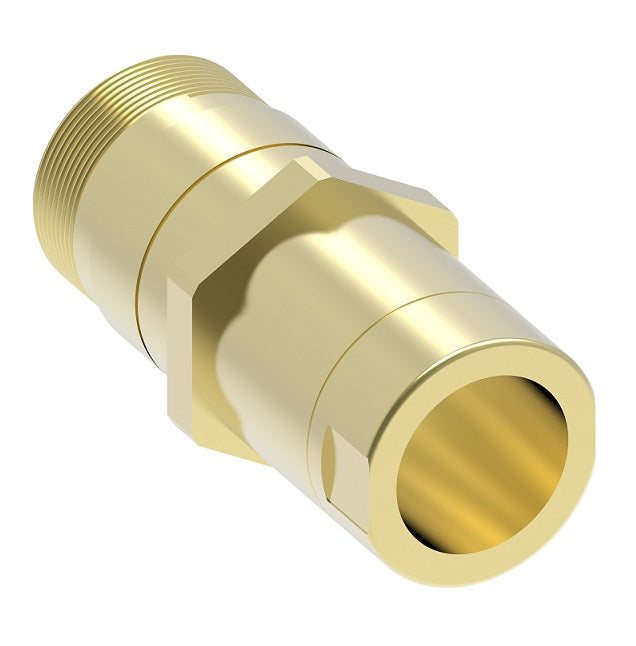

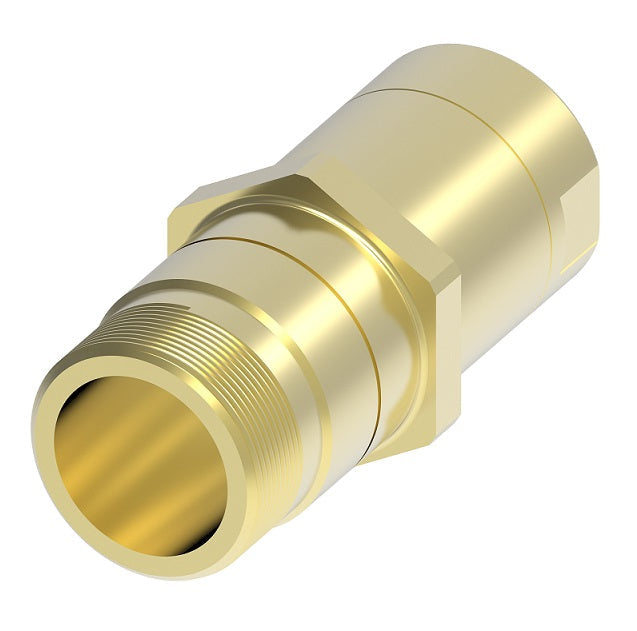

5100-S2-12B Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | 3/4" Female NPT x 3/4" Thread to Connect | Plug | NBR Seal | Valved without Flange | Brass

5100-S2-12B Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | 3/4" Female NPT x 3/4" Thread to Connect | Plug | NBR Seal | Valved without Flange | Brass

$95.61

Hansen® by Danfoss
5100 Series | Thread to Connect

Female NPT (Valved without Flange)

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss.

Thread together latch provides connect under pressure capability and vibration resistance.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 5100-S2-12B Danfoss
Brand: Hansen
Series: 5100 Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Valved
Product Features:
  • Tubular valve construction for virtually no fluid loss during disconnection, reduces environmental and worker safety hazards.
  • Low air inclusion during connection maintains system performance.
  • Connect against pressure capability allows connecting of halves even when pressurized up to 500 psi.
Applications & Markets:
  • Hydraulics and Fluid Transfer
  • On-highway Hydraulic Wet Lines
  • Dump and Refuse Vehicles
  • Bulk Liquid Transfer
  • Note: The 5100 Series is not rated for continuous hydraulic impulse applications.
Materials:
  • Standard body material: Brass body with high resistance carbon steel with zinc trivalent plated valving components, hex and wing nuts.
  • Standard seal materials: Nitrile (NBR).
Body Size Body Interface Size Max. Operating Pressure Connected Max. Operating Pressure Disconnected Vacuum Rated Flow Air Inclusion Fluid Loss
Plug/Male Half
S2 & S4		 Socket/Female Half
S5
1/4" 1/2" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 15 lpm 4 gpm .03 cc. max .01 cc. max
3/8" 1/2" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 26 lpm 7 gpm .05 cc. max .06 cc. max
1/2" 1/2" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 26 lpm 7 gpm .05 cc. max .10 cc. max
5/8" 3/4" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 68 lpm 18 gpm .14 cc. max .10 cc. max
3/4" 3/4" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 68 lpm 18 gpm .34 cc. max .26 cc. max
1" 1" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 151 lpm 40 gpm .50 cc. max .35 cc. max
1-1/4" 1-1/4" 190 bar 2,750 psi 172 bar 2,500 psi 190 bar 2,750 psi 28 in/Hg 284 lpm 75 gpm .68 cc. max .70 cc. max
1-1/2" 1-1/2" 172 bar 2,500 psi 172 bar 2,500 psi 138 bar 2,000 psi 28 in/Hg 379 lpm 100 gpm .60 cc. max .94 cc. max
Plug/Male (Figure 1)
Socket/Female (Figure 2)
Complete (Figure 3)
Dimensions (Female NPT, Valved without Flange)
Part Number Coupling
Type		 Body
Size		 Port
Size		 Thread Type Figure Dimensions
NBR A B Hex 1 Hex 2
5100-S2-4B Plug/Male 1/4" 1/8" 1/8-27 Female NPT 1 1.88"
(47.8mm)		 0.90"
(22.9mm)		 0.69"
(17.5mm)		 -
5110-S5-4B Socket/Female 1/4" 1/8" 1/8-27 Female NPT 2 2.10"
(53.3mm)		 1.32"
(33.5mm)		 0.56"
(14.2mm)		 1.19"
(30.2mm)
5111-4B Complete 1/4" 1/8" 1/8-27 Female NPT 3 3.20"
(81.3mm)		 - - -

5100-S2-6B Plug/Male 3/8" 1/4" 1/4-18 Female NPT 1 2.58"
(65.5mm)		 1.05"
(26.7mm)		 0.94"
(23.9mm)		 -
5110-S5-6B Socket/Female 3/8" 1/4" 1/4-18 Female NPT 2 2.40"
(61.0mm)		 1.53"
(38.9mm)		 0.76"
(19.3mm)		 1.38"
(35.1mm)
5111-6B Complete 3/8" 1/4" 1/4-18 Female NPT 3 4.11"
(104.4mm)		 - - -

5100-S2-8B Plug/Male 1/2" 3/8" 3/8-18 Female NPT 1 2.58"
(65.5mm)		 1.05"
(26.7mm)		 0.94"
(23.9mm)		 -
5110-S5-8B Socket/Female 1/2" 3/8" 3/8-18 Female NPT 2 2.40"
(61.0mm)		 1.53"
(38.9mm)		 0.76"
(19.3mm)		 1.38"
(35.1mm)
5111-8B Complete 1/2" 3/8" 3/8-18 Female NPT 3 4.11"
(104.4mm)		 - - -

5100-S2-10B Plug/Male 5/8" 1/2" 1/2-14 Female NPT 1 3.11"
(79.0mm)		 1.38"
(35.1mm)		 1.19"
(30.2mm)		 -
5110-S5-10B Socket/Female 5/8" 1/2" 1/2-14 Female NPT 2 3.07"
(78.0mm)		 1.98"
(50.3mm)		 1.16"
(29.5mm)		 1.75"
(44.5mm)
5111-10B Complete 5/8" 1/2" 1/2-14 Female NPT 3 5.21"
(132.3mm)		 - - -

5100-S2-12B Plug/Male 3/4" 3/4" 3/4-14 Female NPT 1 3.11"
(79.0mm)		 1.38"
(35.1mm)		 1.19"
(30.2mm)		 -
5110-S5-12B Socket/Female 3/4" 3/4" 3/4-14 Female NPT 2 3.07"
(78.0mm)		 1.98"
(50.3mm)		 1.16"
(29.5mm)		 1.75"
(44.5mm)
5111-12B Complete 3/4" 3/4" 3/4-14 Female NPT 3 5.21"
(132.3mm)		 - - -

5100-S2-16B Plug/Male 1" 1" 1-11-1/2 Female NPT 1 3.55"
(90.2mm)		 1.74"
(44.2mm)		 1.56"
(39.6mm)		 -
5110-S5-16B Socket/Female 1" 1" 1-11-1/2 Female NPT 2 3.68"
(93.5mm)		 2.41"
(61.2mm)		 1.44"
(36.6mm)		 2.12"
(53.8mm)
5111-16B Complete 1" 1" 1-11-1/2 Female NPT 3 5.98"
(151.9mm)		 - - -

5100-S2-20B Plug/Male 1-1/4" 1-1/4" 1-1/4-11-1/2 Female NPT 1 3.71"
(94.2mm)		 2.08"
(52.8mm)		 1.88"
(47.8mm)		 -
5110-S5-20B Socket/Female 1-1/4" 1-1/4" 1-1/4-11-1/2 Female NPT 2 4.00"
(101.6mm)		 2.31"
(58.7mm)		 1.78"
(45.2mm)		 2.50"
(63.5mm)
5111-20B Complete 1-1/4" 1-1/4" 1-1/4-11-1/2 Female NPT 3 6.31"
(160.3mm)		 - - -

5100-S2-24B Plug/Male 1-1/2" 1-1/2" 1-1/2-11-1/2 Female NPT 1 4.12"
(104.6mm)		 2.46"
(62.5mm)		 2.19"
(55.6mm)		 2.19"
(55.6mm)
5110-S5-24B Socket/Female 1-1/2" 1-1/2" 1-1/2-11-1/2 Female NPT 2 4.10"
(104.1mm)		 3.10"
(78.7mm)		 2.00"
(50.8mm)		 -
5111-24B Complete 1-1/2" 1-1/2" 1-1/2-11-1/2 Female NPT 3 6.52"
(165.6mm)		 - - -

5100 Series | Dust Caps & Dust Plugs
Dust Cap
with Chain
Part Number		 Dust Plug
with Chain
Part Number		 Dust Cap
without Chain
Part Number		 Body
Size
5100-S7-5 5100-S9-5 - 1/4"
5100-S7-8 5100-S9-8 5100-32-8 3/8" & 1/2"
5100-S7-12 5100-S9-12 5100-32-12 5/8" & 3/4"
5100-S7-16 5100-S9-16 5100-32-16 1"
5100-S7-20 5100-S9-20 5100-32-20 1-1/4"
5100-S7-24 5100-S9-24 5100-32-24 1-1/2"
