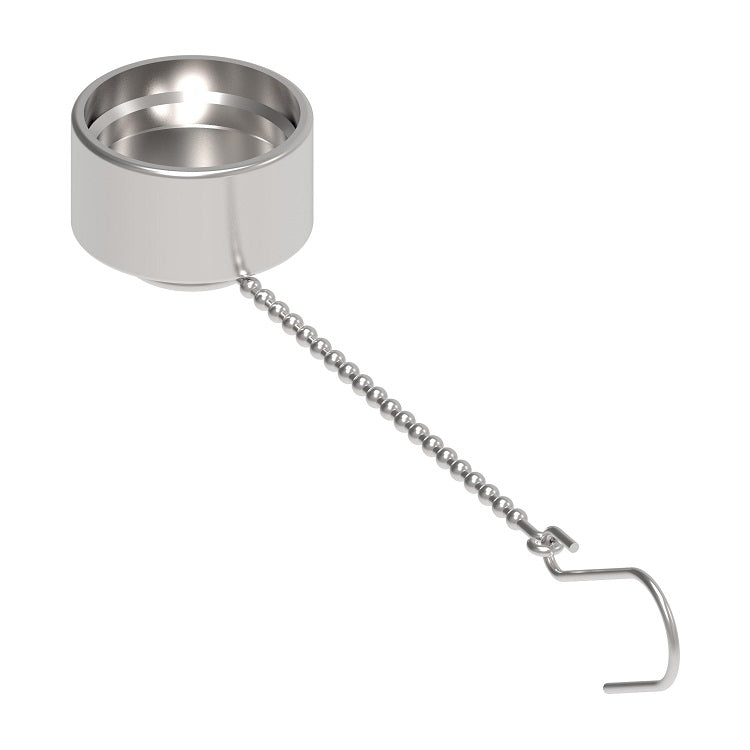

5100-S7-12 Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | Dust Cap with Chain | 5/8" & 3/4" Body Size | Steel

5100-S7-12 Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | Dust Cap with Chain | 5/8" & 3/4" Body Size | Steel

$19.09 - $19.09

$19.09

$19.09 - $19.09

$19.09

Hansen® by Danfoss
5100 Series | Thread to Connect | Dust Cap

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss.

Quantity

Specifications for Variant SKU: 5100-S7-12 Danfoss
Brand:	Hansen
Series:	5100 Series
Shape (Orientation):	No Orientation
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Applications & Markets:	Hydraulics and Fluid Transfer On-highway Hydraulic Wet Lines Dump and Refuse Vehicles Bulk Liquid Transfer Note: The 5100 Series is not rated for continuous hydraulic impulse applications.
Materials:	Standard body material: carbon steel.

Dust Cap with Chain Part Number	Dust Plug with Chain Part Number	Dust Cap without Chain Part Number	Body Size
5100-S7-5	5100-S9-5	-	1/4"
5100-S7-8	5100-S9-8	5100-32-8	3/8" & 1/2"
5100-S7-12	5100-S9-12	5100-32-12	5/8" & 3/4"
5100-S7-16	5100-S9-16	5100-32-16	1"
5100-S7-20	5100-S9-20	5100-32-20	1-1/4"
5100-S7-24	5100-S9-24	5100-32-24	1-1/2"
