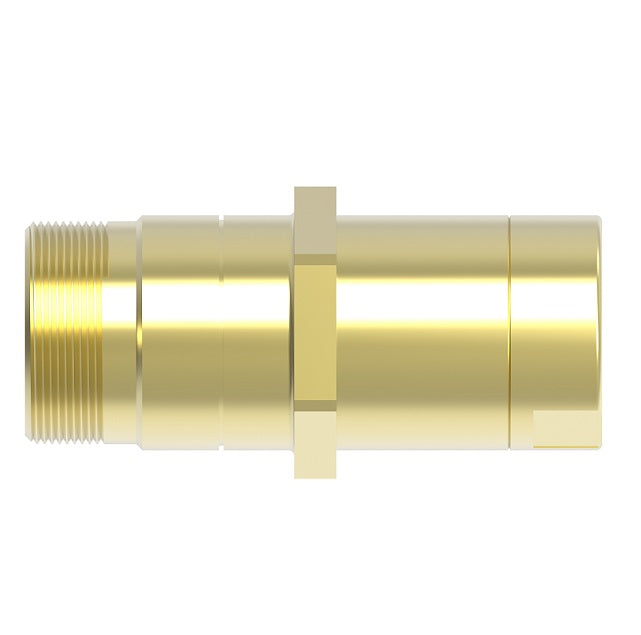

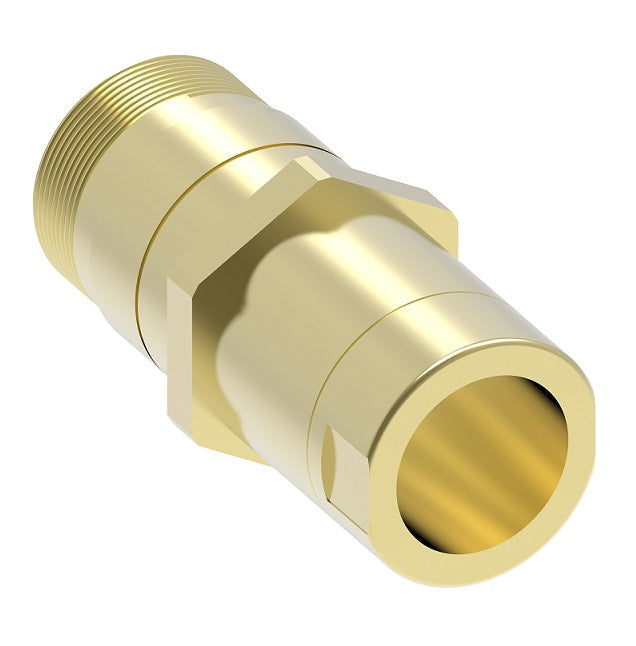

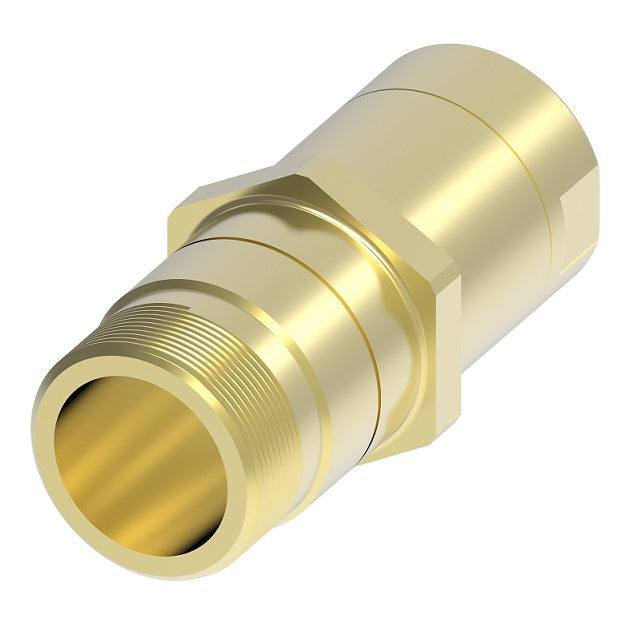

5100-S2-8B Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | 3/8" Female NPT x 1/2" Thread to Connect | Plug | NBR Seal | Valved without Flange | Brass

$71.89 - $71.89

$71.89

$71.89 - $71.89

$71.89

Hansen® by Danfoss
5100 Series | Thread to Connect

Female NPT (Valved without Flange)

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss.

Thread together latch provides connect under pressure capability and vibration resistance.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 5100-S2-8B Danfoss
Brand:	Hansen
Series:	5100 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Valved

Product Features:	Tubular valve construction for virtually no fluid loss during disconnection, reduces environmental and worker safety hazards. Low air inclusion during connection maintains system performance. Connect against pressure capability allows connecting of halves even when pressurized up to 500 psi.
Applications & Markets:	Hydraulics and Fluid Transfer On-highway Hydraulic Wet Lines Dump and Refuse Vehicles Bulk Liquid Transfer Note: The 5100 Series is not rated for continuous hydraulic impulse applications.
Materials:	Standard body material: Brass body with high resistance carbon steel with zinc trivalent plated valving components, hex and wing nuts. Standard seal materials: Nitrile (NBR).

Body Size	Body Interface Size	Max. Operating Pressure Connected		Max. Operating Pressure Disconnected				Vacuum	Rated Flow		Air Inclusion	Fluid Loss
Body Size	Body Interface Size	Max. Operating Pressure Connected		Plug/Male Half S2 & S4		Socket/Female Half S5		Vacuum	Rated Flow		Air Inclusion	Fluid Loss
1/4"	1/2"	207 bar	3,000 psi	207 bar	3,000 psi	207 bar	3,000 psi	28 in/Hg	15 lpm	4 gpm	.03 cc. max	.01 cc. max
3/8"	1/2"	207 bar	3,000 psi	207 bar	3,000 psi	207 bar	3,000 psi	28 in/Hg	26 lpm	7 gpm	.05 cc. max	.06 cc. max
1/2"	1/2"	207 bar	3,000 psi	207 bar	3,000 psi	207 bar	3,000 psi	28 in/Hg	26 lpm	7 gpm	.05 cc. max	.10 cc. max
5/8"	3/4"	207 bar	3,000 psi	207 bar	3,000 psi	207 bar	3,000 psi	28 in/Hg	68 lpm	18 gpm	.14 cc. max	.10 cc. max
3/4"	3/4"	207 bar	3,000 psi	207 bar	3,000 psi	207 bar	3,000 psi	28 in/Hg	68 lpm	18 gpm	.34 cc. max	.26 cc. max
1"	1"	207 bar	3,000 psi	207 bar	3,000 psi	207 bar	3,000 psi	28 in/Hg	151 lpm	40 gpm	.50 cc. max	.35 cc. max
1-1/4"	1-1/4"	190 bar	2,750 psi	172 bar	2,500 psi	190 bar	2,750 psi	28 in/Hg	284 lpm	75 gpm	.68 cc. max	.70 cc. max
1-1/2"	1-1/2"	172 bar	2,500 psi	172 bar	2,500 psi	138 bar	2,000 psi	28 in/Hg	379 lpm	100 gpm	.60 cc. max	.94 cc. max


Plug/Male (Figure 1)				Socket/Female (Figure 2)				Complete (Figure 3)
Dimensions (Female NPT, Valved without Flange)
Part Number	Coupling Type	Body Size	Port Size	Thread	Type	Figure	Dimensions
NBR	Coupling Type	Body Size	Port Size	Thread	Type	Figure	A	B	Hex 1	Hex 2
5100-S2-4B	Plug/Male	1/4"	1/8"	1/8-27	Female NPT	1	1.88" (47.8mm)	0.90" (22.9mm)	0.69" (17.5mm)	-
5110-S5-4B	Socket/Female	1/4"	1/8"	1/8-27	Female NPT	2	2.10" (53.3mm)	1.32" (33.5mm)	0.56" (14.2mm)	1.19" (30.2mm)
5111-4B	Complete	1/4"	1/8"	1/8-27	Female NPT	3	3.20" (81.3mm)	-	-	-

5100-S2-6B	Plug/Male	3/8"	1/4"	1/4-18	Female NPT	1	2.58" (65.5mm)	1.05" (26.7mm)	0.94" (23.9mm)	-
5110-S5-6B	Socket/Female	3/8"	1/4"	1/4-18	Female NPT	2	2.40" (61.0mm)	1.53" (38.9mm)	0.76" (19.3mm)	1.38" (35.1mm)
5111-6B	Complete	3/8"	1/4"	1/4-18	Female NPT	3	4.11" (104.4mm)	-	-	-

5100-S2-8B	Plug/Male	1/2"	3/8"	3/8-18	Female NPT	1	2.58" (65.5mm)	1.05" (26.7mm)	0.94" (23.9mm)	-
5110-S5-8B	Socket/Female	1/2"	3/8"	3/8-18	Female NPT	2	2.40" (61.0mm)	1.53" (38.9mm)	0.76" (19.3mm)	1.38" (35.1mm)
5111-8B	Complete	1/2"	3/8"	3/8-18	Female NPT	3	4.11" (104.4mm)	-	-	-

5100-S2-10B	Plug/Male	5/8"	1/2"	1/2-14	Female NPT	1	3.11" (79.0mm)	1.38" (35.1mm)	1.19" (30.2mm)	-
5110-S5-10B	Socket/Female	5/8"	1/2"	1/2-14	Female NPT	2	3.07" (78.0mm)	1.98" (50.3mm)	1.16" (29.5mm)	1.75" (44.5mm)
5111-10B	Complete	5/8"	1/2"	1/2-14	Female NPT	3	5.21" (132.3mm)	-	-	-

5100-S2-12B	Plug/Male	3/4"	3/4"	3/4-14	Female NPT	1	3.11" (79.0mm)	1.38" (35.1mm)	1.19" (30.2mm)	-
5110-S5-12B	Socket/Female	3/4"	3/4"	3/4-14	Female NPT	2	3.07" (78.0mm)	1.98" (50.3mm)	1.16" (29.5mm)	1.75" (44.5mm)
5111-12B	Complete	3/4"	3/4"	3/4-14	Female NPT	3	5.21" (132.3mm)	-	-	-

5100-S2-16B	Plug/Male	1"	1"	1-11-1/2	Female NPT	1	3.55" (90.2mm)	1.74" (44.2mm)	1.56" (39.6mm)	-
5110-S5-16B	Socket/Female	1"	1"	1-11-1/2	Female NPT	2	3.68" (93.5mm)	2.41" (61.2mm)	1.44" (36.6mm)	2.12" (53.8mm)
5111-16B	Complete	1"	1"	1-11-1/2	Female NPT	3	5.98" (151.9mm)	-	-	-

5100-S2-20B	Plug/Male	1-1/4"	1-1/4"	1-1/4-11-1/2	Female NPT	1	3.71" (94.2mm)	2.08" (52.8mm)	1.88" (47.8mm)	-
5110-S5-20B	Socket/Female	1-1/4"	1-1/4"	1-1/4-11-1/2	Female NPT	2	4.00" (101.6mm)	2.31" (58.7mm)	1.78" (45.2mm)	2.50" (63.5mm)
5111-20B	Complete	1-1/4"	1-1/4"	1-1/4-11-1/2	Female NPT	3	6.31" (160.3mm)	-	-	-

5100-S2-24B	Plug/Male	1-1/2"	1-1/2"	1-1/2-11-1/2	Female NPT	1	4.12" (104.6mm)	2.46" (62.5mm)	2.19" (55.6mm)	2.19" (55.6mm)
5110-S5-24B	Socket/Female	1-1/2"	1-1/2"	1-1/2-11-1/2	Female NPT	2	4.10" (104.1mm)	3.10" (78.7mm)	2.00" (50.8mm)	-
5111-24B	Complete	1-1/2"	1-1/2"	1-1/2-11-1/2	Female NPT	3	6.52" (165.6mm)	-	-	-

5100 Series \| Dust Caps & Dust Plugs
Dust Cap with Chain Part Number	Dust Plug with Chain Part Number	Dust Cap without Chain Part Number	Body Size
5100-S7-5	5100-S9-5	-	1/4"
5100-S7-8	5100-S9-8	5100-32-8	3/8" & 1/2"
5100-S7-12	5100-S9-12	5100-32-12	5/8" & 3/4"
5100-S7-16	5100-S9-16	5100-32-16	1"
5100-S7-20	5100-S9-20	5100-32-20	1-1/4"
5100-S7-24	5100-S9-24	5100-32-24	1-1/2"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
