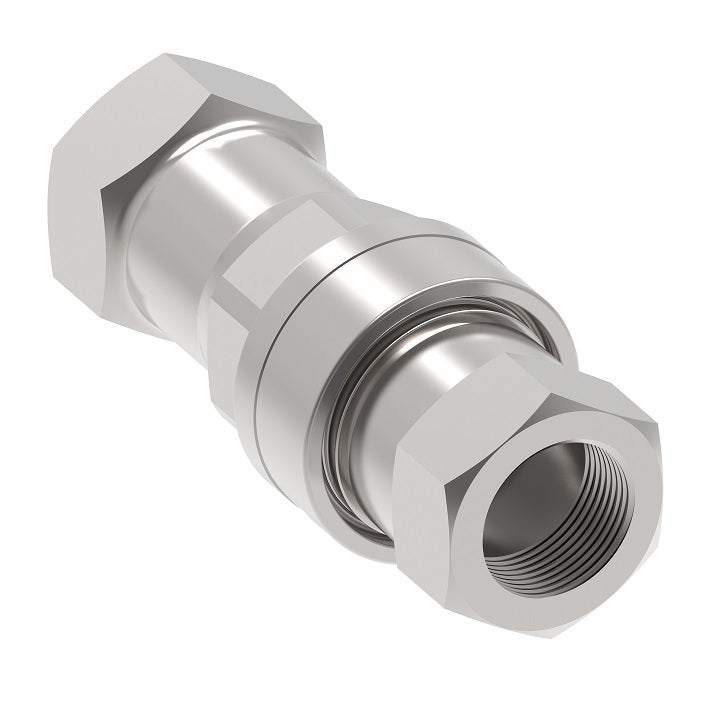

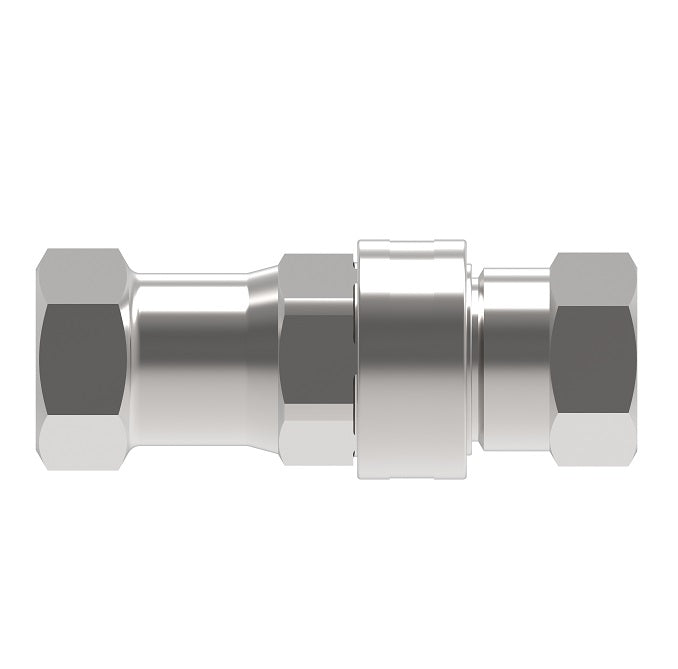

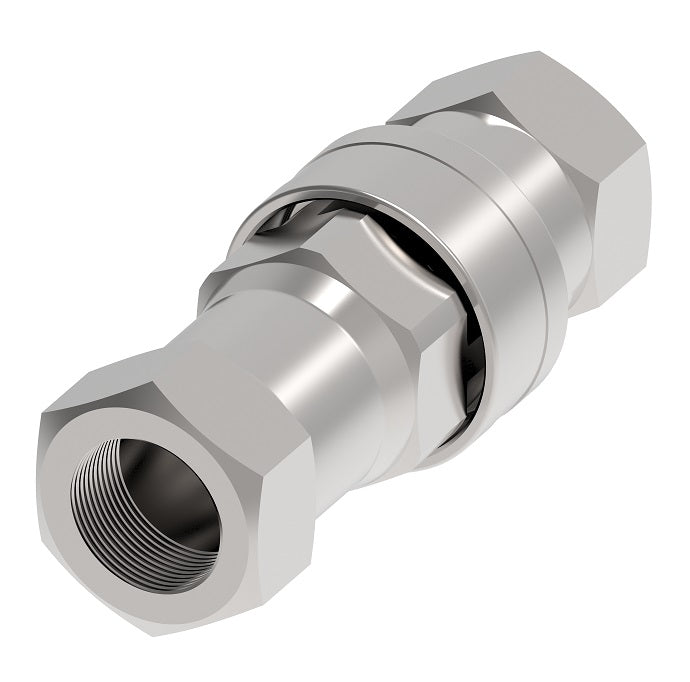

5600-4-4S Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1/4" Female NPT x 1/4" ISO 7241 Type A | Complete Plug and Socket Set | Valved | Buna-N Seal | Carbon Steel

5600-4-4S Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1/4" Female NPT x 1/4" ISO 7241 Type A | Complete Plug and Socket Set | Valved | Buna-N Seal | Carbon Steel

$46.00 - $46.00

$46.00

$46.00 - $46.00

$46.00

Hansen® by Danfoss
5600 Series | ISO 7241-1 A Interchange

Female NPT (Valved)

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5600 Series features a rugged ball latch mechanism with self-sealing poppet valves.

Quantity

Specifications for Variant SKU: 5600-4-4S Danfoss
Brand:	Hansen
Series:	5600 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female NPT, 1/4in ISO-A QD Interchange
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Self-sealing poppet valve provides excellent high and low pressure sealing. Streamlined valving provides minimum pressure drop.
Applications & Markets:	Hydraulic fluid transfer Agricultural equipment Construction equipment Dump, snow plow and maintenance vehicles In-plant manufacturing
ISO Standard:	Meets dimensional requirements to ISO standard 7241-1 Series A
Materials:	Standard body material: High resistance carbon steel with zinc trivalent plating (Brass poppet guide in -04 size) Standard seal materials: Buna-N, EPDM and FKM

Body Size	Max. Operating Pressure		Minimum Burst Pressure Connected		Vacuum Connected Only	Rated Flow		Air Inclusion	Fluid Loss
in	bar	psi	bar	psi	in/hg	lpm	gpm	cc.max.	cc.max.
1/4	350	5000	1050	15000	28	4	1	0.50	0.50
3/8	280	4000	840	12000	28	23	6	1.5	1.3
5/8	280	4000	840	12000	28	45	12	2.8	2.8
3/4	280	4000	840	12000	28	106	28	10.0	8.2
1	280	4000	840	12000	28	189	50	14.2	14.2


Plug/Male (Figure 1)			Socket/Female (Figure 2)					Complete (Figure 3)
Dimensions (Female NPT, Valved)
Part Number			Coupling Type	Port Size	Size	Thread	Type	Figure	Dimensions
Buna-N	FKM	EPDM							A		B		Hex 1
Buna-N	FKM	EPDM							mm	in	mm	in	mm	in
5602-2-4S	FD56-1062-02-04	5644-2-4S	Plug/Male	1/4"	1/8"	1/8-27	Female NPT	1	31.5mm	1.24"	-	-	14.2mm	0.56"
5601-2-4S	FD56-1064-02-04	5643-2-4S	Socket/Female	1/4"	1/8"	1/8-27	Female NPT	2	46mm	1.81"	27.4mm	1.08"	22.4mm	0.88"

5602-4-4S	FD56-1062-04-04	5644-4-4S	Plug/Male	1/4"	1/4"	1/4-18	Female NPT	1	33.3mm	1.31"	-	-	19.1mm	0.75"
5601-4-4S	FD56-1064-04-04	5643-4-4S	Socket/Female	1/4"	1/4"	1/4-18	Female NPT	2	46mm	1.81"	27.4mm	1.08"	22.4mm	0.88"
5600-4-4S	FD56-1065-04-04	5642-4-4S	Complete	1/4"	1/4"	1/4-18	Female NPT	3	63.2mm	2.49"	-	-	-	-

5602-6-6S	FD56-1062-06-06	5644-6-6S	Plug/Male	3/8"	3/8"	3/8-18	Female NPT	1	37.3mm	1.47"	-	-	22.4mm	0.88"
5601-6-6S	FD56-1064-06-06	5643-6-6S	Socket/Female	3/8"	3/8"	3/8-18	Female NPT	2	54.6mm	2.15"	31.2mm	1.23"	25.4mm	1.00"
5600-6-6S	FD56-1065-06-06	5642-6-6S	Complete	3/8"	3/8"	3/8-18	Female NPT	3	71.1mm	2.80"	-	-	-	-

5602-8-10S	FD56-1062-08-10	5644-8-10S	Plug/Male	5/8"	1/2"	1/2-14	Female NPT	1	51.3mm	2.02"	-	-	26.9mm	1.06"
5601-8-10S	FD56-1064-08-10	5643-8-10S	Socket/Female	5/8"	1/2"	1/2-14	Female NPT	2	66.3mm	2.61"	38.1mm	1.50"	30.2mm	1.19"
5600-8-10S	FD56-1065-08-10	5642-8-10S	Complete	5/8"	1/2"	1/2-14	Female NPT	3	96mm	3.78"	-	-	-	-

5602-12-10S	FD56-1062-12-10	-	Plug/Male	5/8"	3/4"	3/4-14	Female NPT	1	54.9mm	2.16"	-	-	35.1mm	1.38"
5601-12-10S	FD56-1064-12-10	5643-12-10S	Socket/Female	5/8"	3/4"	3/4-14	Female NPT	2	66.3mm	2.61"	38.1mm	1.50"	33.3mm	1.31"
5600-12-10S	FD56-1065-12-10	5642-12-10S	Complete	5/8"	3/4"	3/4-14	Female NPT	3	103.1mm	4.06"	-	-	-	-

5602-12-12S	FD56-1062-12-12	5644-12-12S	Plug/Male	3/4"	3/4"	3/4-14	Female NPT	1	64.8mm	2.55"	-	-	35.1mm	1.38"
5601-12-12S	FD56-1064-12-12	5643-12-12S	Socket/Female	3/4"	3/4"	3/4-14	Female NPT	2	82.6mm	3.25"	46mm	1.81"	38.1mm	1.50"
5600-12-12S	FD56-1065-12-12	5642-12-12S	Complete	3/4"	3/4"	3/4-14	Female NPT	3	115.8mm	4.56"	-	-	-	-

5602-16-16S	FD56-1062-16-16	5644-16-16S	Plug/Male	1"	1"	1-11 1/2	Female NPT	1	78.7mm	3.10"	-	-	41.1mm	1.62"
5601-16-16S	FD56-1064-16-16	5643-16-16S	Socket/Female	1"	1"	1-11-1/2	Female NPT	2	97mm	3.82"	53.3mm	2.10"	42.9mm	1.69"
5600-16-16S	FD56-1065-16-16	5642-16-16S	Complete	1"	1"	1-11-1/2	Female NPT	3	123.4mm	4.86"	-	-	-	-

Dimensions (Female NPT, Valved with Sleeve Lock)
Part Number			Coupling Type	Port Size	Size	Thread	Type	Figure	Dimensions
Buna-N	FKM	EPDM							A		B		Hex 1
Buna-N	FKM	EPDM							mm	in	mm	in	mm	in
FD56-1239-08-10	-	-	Socket/Female	5/8"	1/2"	1/2-14	Female NPT	2	66.3mm	2.61"	38.1mm	1.50"	30.2mm	1.19"
FD56-1239-16-16	-	-	Socket/Female	1"	1"	1-11-1/2	Female NPT	2	97.0mm	3.82"	54.1mm	2.13"	42.9mm	1.69"
