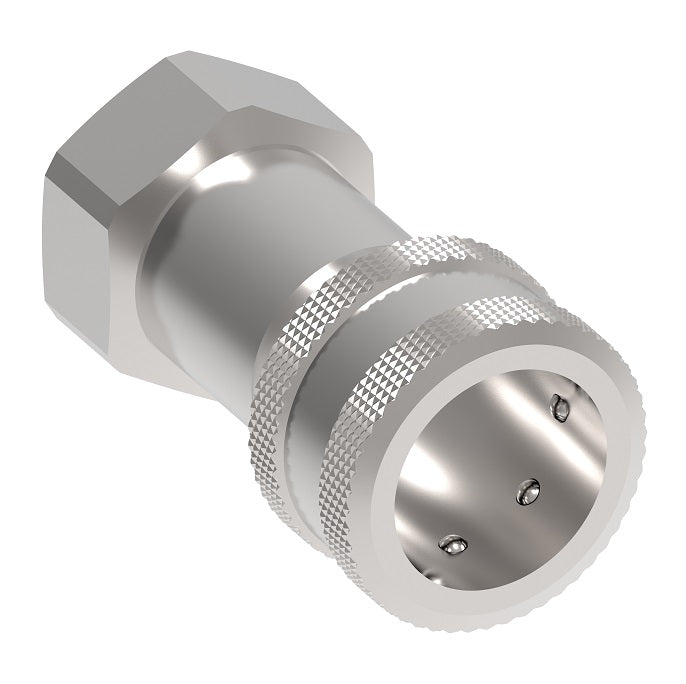

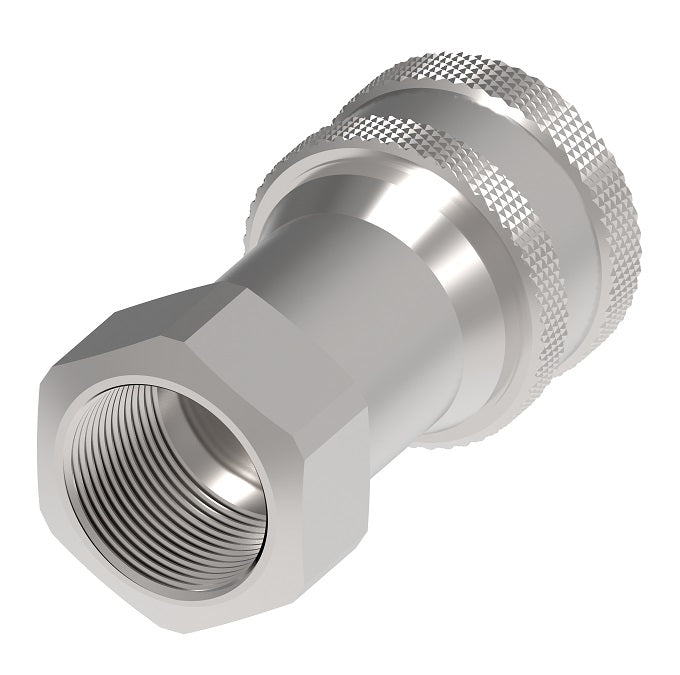

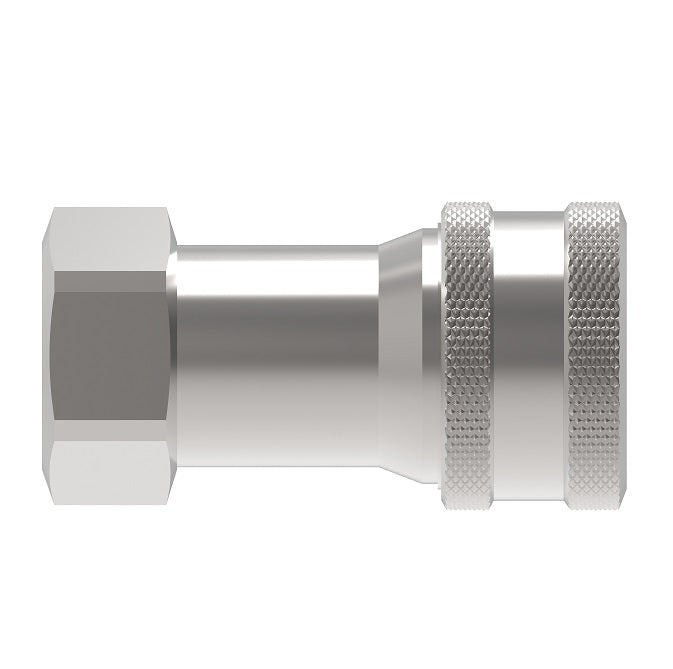

5601-12-10S Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPT x 5/8" ISO 7241 Type A | Socket | Valved | Buna-N Seal | Carbon Steel

5601-12-10S Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPT x 5/8" ISO 7241 Type A | Socket | Valved | Buna-N Seal | Carbon Steel

$0.00 - $0.00
$0.00
$52.84
$52.84 - $52.84
$52.84

Hansen® by Danfoss
5600 Series | ISO 7241-1 A Interchange

Female NPT (Valved)

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5600 Series features a rugged ball latch mechanism with self-sealing poppet valves.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 5601-12-10S Danfoss
Brand: Hansen
Series: 5600 Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPT, 5/8in ISO-A QD Interchange
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Self-sealing poppet valve provides excellent high and low pressure sealing.
  • Streamlined valving provides minimum pressure drop.
Applications & Markets:
  • Hydraulic fluid transfer
  • Agricultural equipment
  • Construction equipment
  • Dump, snow plow and maintenance vehicles
  • In-plant manufacturing
ISO Standard:
  • Meets dimensional requirements to ISO standard 7241-1 Series A
Materials:
  • Standard body material: High resistance carbon steel with zinc trivalent plating (Brass poppet guide in -04 size)
  • Standard seal materials: Buna-N, EPDM and FKM
Body Size Max. Operating Pressure Minimum Burst Pressure Connected Vacuum Connected Only Rated Flow Air Inclusion Fluid Loss
in bar psi bar psi in/hg lpm gpm cc.max. cc.max.
1/4 350 5000 1050 15000 28 4 1 0.50 0.50
3/8 280 4000 840 12000 28 23 6 1.5 1.3
5/8 280 4000 840 12000 28 45 12 2.8 2.8
3/4 280 4000 840 12000 28 106 28 10.0 8.2
1 280 4000 840 12000 28 189 50 14.2 14.2
Plug/Male (Figure 1)
Socket/Female (Figure 2)
Complete (Figure 3)
Dimensions (Female NPT, Valved)
Part Number Coupling
Type		 Port
Size		 Size Thread Type Figure Dimensions
Buna-N FKM EPDM A B Hex 1
mm in mm in mm in
5602-2-4S FD56-1062-02-04 5644-2-4S Plug/Male 1/4" 1/8" 1/8-27 Female NPT 1 31.5mm 1.24" - - 14.2mm 0.56"
5601-2-4S FD56-1064-02-04 5643-2-4S Socket/Female 1/4" 1/8" 1/8-27 Female NPT 2 46mm 1.81" 27.4mm 1.08" 22.4mm 0.88"
5600-2-4S FD56-1065-02-04 5642-2-4S Complete 1/4" 1/8" 1/8-27 Female NPT 3 61.5mm 2.42" - - - -
5602-4-4S FD56-1062-04-04 5644-4-4S Plug/Male 1/4" 1/4" 1/4-18 Female NPT 1 33.3mm 1.31" - - 19.1mm 0.75"
5601-4-4S FD56-1064-04-04 5643-4-4S Socket/Female 1/4" 1/4" 1/4-18 Female NPT 2 46mm 1.81" 27.4mm 1.08" 22.4mm 0.88"
5600-4-4S FD56-1065-04-04 5642-4-4S Complete 1/4" 1/4" 1/4-18 Female NPT 3 63.2mm 2.49" - - - -
5602-6-6S FD56-1062-06-06 5644-6-6S Plug/Male 3/8" 3/8" 3/8-18 Female NPT 1 37.3mm 1.47" - - 22.4mm 0.88"
5601-6-6S FD56-1064-06-06 5643-6-6S Socket/Female 3/8" 3/8" 3/8-18 Female NPT 2 54.6mm 2.15" 31.2mm 1.23" 25.4mm 1.00"
5600-6-6S FD56-1065-06-06 5642-6-6S Complete 3/8" 3/8" 3/8-18 Female NPT 3 71.1mm 2.80" - - - -
5602-8-10S FD56-1062-08-10 5644-8-10S Plug/Male 5/8" 1/2" 1/2-14 Female NPT 1 51.3mm 2.02" - - 26.9mm 1.06"
5601-8-10S FD56-1064-08-10 5643-8-10S Socket/Female 5/8" 1/2" 1/2-14 Female NPT 2 66.3mm 2.61" 38.1mm 1.50" 30.2mm 1.19"
5600-8-10S FD56-1065-08-10 5642-8-10S Complete 5/8" 1/2" 1/2-14 Female NPT 3 96mm 3.78" - - - -
5602-12-10S FD56-1062-12-10 5644-12-10S Plug/Male 5/8" 3/4" 3/4-14 Female NPT 1 54.9mm 2.16" - - 35.1mm 1.38"
5601-12-10S FD56-1064-12-10 5643-12-10S Socket/Female 5/8" 3/4" 3/4-14 Female NPT 2 66.3mm 2.61" 38.1mm 1.50" 33.3mm 1.31"
5600-12-10S FD56-1065-12-10 5642-12-10S Complete 5/8" 3/4" 3/4-14 Female NPT 3 103.1mm 4.06" - - - -
5602-12-12S FD56-1062-12-12 5644-12-12S Plug/Male 3/4" 3/4" 3/4-14 Female NPT 1 64.8mm 2.55" - - 35.1mm 1.38"
5601-12-12S FD56-1064-12-12 5643-12-12S Socket/Female 3/4" 3/4" 3/4-14 Female NPT 2 82.6mm 3.25" 46mm 1.81" 38.1mm 1.50"
5600-12-12S FD56-1065-12-12 5642-12-12S Complete 3/4" 3/4" 3/4-14 Female NPT 3 115.8mm 4.56" - - - -
5602-16-16S FD56-1062-16-16 5644-16-16S Plug/Male 1" 1" 1-11 1/2 Female NPT 1 78.7mm 3.10" - - 41.1mm 1.62"
5601-16-16S FD56-1064-16-16 5643-16-16S Socket/Female 1" 1" 1-11-1/2 Female NPT 2 97mm 3.82" 53.3mm 2.10" 42.9mm 1.69"
5600-16-16S FD56-1065-16-16 5642-16-16S Complete 1" 1" 1-11-1/2 Female NPT 3 123.4mm 4.86" - - - -
Dimensions (Female NPT, Valved with Sleeve Lock)
Part Number Coupling
Type		 Port
Size		 Size Thread Type Figure Dimensions
Buna-N FKM EPDM A B Hex 1
mm in mm in mm in
FD56-1239-08-10 - - Socket/Female 5/8" 1/2" 1/2-14 Female NPT 2 66.3mm 2.61" 38.1mm 1.50" 30.2mm 1.19"
FD56-1239-16-16 - - Socket/Female 1" 1" 1-11-1/2 Female NPT 2 97.0mm 3.82" 54.1mm 2.13" 42.9mm 1.69"
