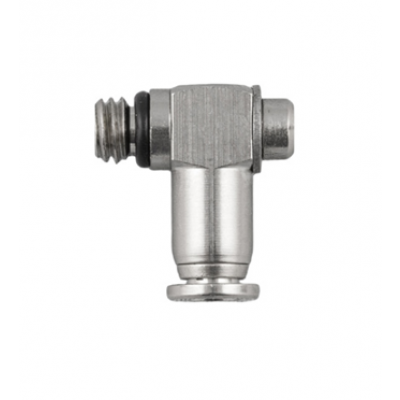

56550-3-M3 AIGNEP | 55/56 Series | Mini Single Banjo Body | 3mm Tube x M3 Male | Pack of 10
56550-3-M3 by AIGNEP | 55/56 Series | Mini Single Banjo Body | 3mm Tube x M3 Male | Pack of 10
56550-3-M3 AIGNEP | 55/56 Series | Mini Single Banjo Body | 3mm Tube x M3 Male | Pack of 10

56550-3-M3 by AIGNEP | 55/56 Series | Mini Single Banjo Body | 3mm Tube x M3 Male | Pack of 10

Save $0.54 Save $0.54
$54.37
$54.37 - $54.37
$54.37
$53.83
$53.83 - $53.83
$53.83

Package Quantity: 10 ea

Specifications for Variant SKU: 56550-3-M3 AIGNEP | 10 |
Series: 55/56 Series
Shape (Orientation): Banjo
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Single Banjo Body Male Mini

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Seal: NBR

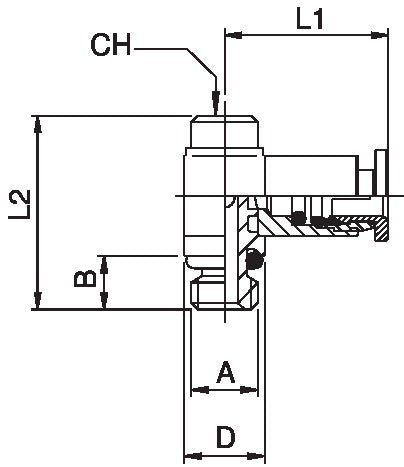

Product Number Tube A B L1 L2 CH D
56550-3-M3 3 mm M3 3 mm 12 mm 13.5 mm 2 mm 6 mm
56550-3-M5 3 mm M5 4 mm 12 mm 14.5 mm 2 mm 6 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
