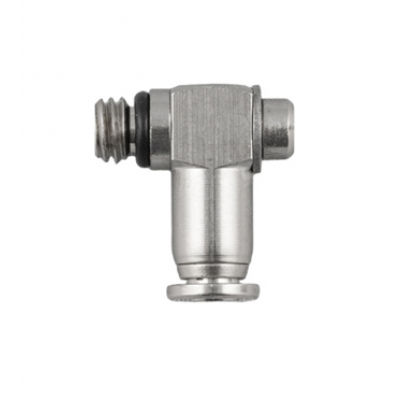

56550-3-M5 AIGNEP | 55/56 Series | Mini Single Banjo Body | 3mm Tube x M5 Male | Pack of 10

56550-3-M5 by AIGNEP | 55/56 Series | Mini Single Banjo Body | 3mm Tube x M5 Male | Pack of 10

Save $34.22

$85.55

$85.55 - $85.55

$85.55

$51.33

$51.33 - $51.33

$51.33

Package Quantity: 10 ea

Specifications for Variant SKU: 56550-3-M5 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Banjo
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Single Banjo Body Male Mini

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Seal: NBR

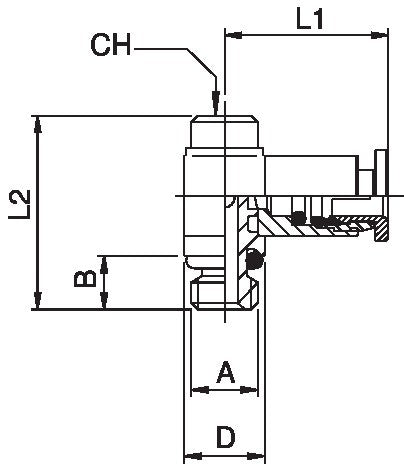

Product Number	Tube	A	B	L1	L2	CH	D
56550-3-M3	3 mm	M3	3 mm	12 mm	13.5 mm	2 mm	6 mm
56550-3-M5	3 mm	M5	4 mm	12 mm	14.5 mm	2 mm	6 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
