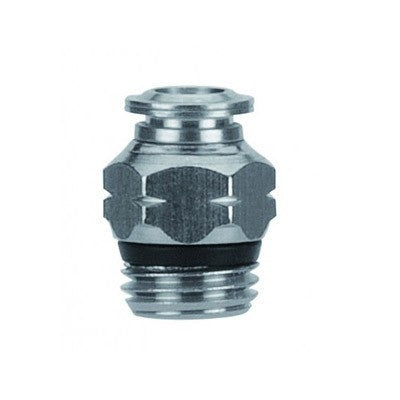

57000-10-1/2" AIGNEP | 57 Series | Straight Male Metal Release Collet | 10mm Tube x 1/2" Swift-Fit Male | Pack of 10

57000-10-1/2 by AIGNEP | 57 Series | Male Metal Release Collet | 10mm Tube x 1/2" Swift-Fit Male | Straight | Pack of 10

Save $0.24

$24.59

$24.59 - $24.59

$24.59

$24.35

$24.35 - $24.35

$24.35

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: 57000-10-1/2 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	Straight
Ends Configuration:	10mm Push-to-Connect, 1/2in Male Swift-Fit
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Straight Male Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

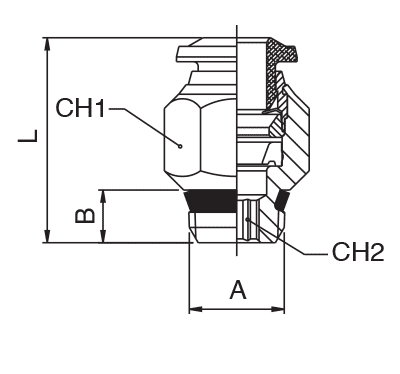

Product Number	Tube	A	B	L	CH1	CH2
57000-6-1/8	6 mm	1/8''	5.5 mm	21.5 mm	13 mm	4 mm
57000-6-1/4	6 mm	1/4''	7 mm	21 mm	14 mm	4 mm
57000-6-3/8	6 mm	3/8''	7.5 mm	23 mm	17 mm	4 mm
57000-6-1/2	6 mm	1/2''	9 mm	23.5 mm	21 mm	4 mm
57000-12-1/4	12 mm	1/4''	7 mm	31.5 mm	20 mm	7 mm
57000-12-3/8	12 mm	3/8''	7.5 mm	29.5 mm	20 mm	9 mm
57000-14-3/8	14 mm	3/8''	7.5 mm	32.5 mm	21 mm	9 mm
57000-14-1/2	14 mm	1/2''	9 mm	31.5 mm	21 mm	10 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
