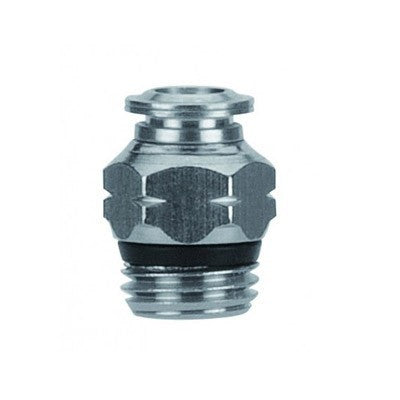

57000-6-3/8" AIGNEP | 57 Series | Straight Male Metal Release Collet | 6mm Tube x 3/8" Swift-Fit Male | Pack of 10
57000-6-3/8 by AIGNEP | 57 Series | Male Metal Release Collet | 6mm Tube x 3/8" Swift-Fit Male | Straight | Pack of 10
57000-6-3/8" AIGNEP | 57 Series | Straight Male Metal Release Collet | 6mm Tube x 3/8" Swift-Fit Male | Pack of 10

57000-6-3/8 by AIGNEP | 57 Series | Male Metal Release Collet | 6mm Tube x 3/8" Swift-Fit Male | Straight | Pack of 10

Save $11.83 Save $11.83
$29.58
$29.58 - $29.58
$29.58
$17.75
$17.75 - $17.75
$17.75

Package Quantity: 10 ea

Specifications for Variant SKU: 57000-6-3/8 AIGNEP | 10 |
Series: 57 Series
Shape (Orientation): Straight
Ends Configuration: 6mm Push-to-Connect, 3/8in Male Swift-Fit
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Straight Male Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Product Number Tube A B L CH1 CH2
57000-6-1/8 6 mm 1/8'' 5.5 mm 21.5 mm 13 mm 4 mm
57000-6-1/4 6 mm 1/4'' 7 mm 21 mm 14 mm 4 mm
57000-6-3/8 6 mm 3/8'' 7.5 mm 23 mm 17 mm 4 mm
57000-6-1/2 6 mm 1/2'' 9 mm 23.5 mm 21 mm 4 mm
57000-12-1/4 12 mm 1/4'' 7 mm 31.5 mm 20 mm 7 mm
57000-12-3/8 12 mm 3/8'' 7.5 mm 29.5 mm 20 mm 9 mm
57000-14-3/8 14 mm 3/8'' 7.5 mm 32.5 mm 21 mm 9 mm
57000-14-1/2 14 mm 1/2'' 9 mm 31.5 mm 21 mm 10 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
