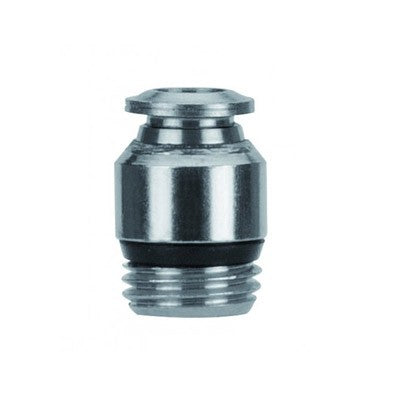

57010-6-1/4 by AIGNEP | 57 Series | Male Metal Release Collet | Internal Hex 6mm Tube x 1/4" Swift-Fit Male | Straight | Pack of 10

Save $0.16 Save $0.16
Original price $14.97
Original price $14.97 - Original price $14.97
Original price $14.97
Current price $14.81
$14.81 - $14.81
Current price $14.81

Package Quantity: 10 ea

Specifications for Variant SKU: 57010-6-1/4 AIGNEP | 10 |
Series: 57 Series
Shape (Orientation): Straight
Ends Configuration: 6mm Push-to-Connect, 1/4in Male Swift-Fit
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Straight Male With Internal Hex Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

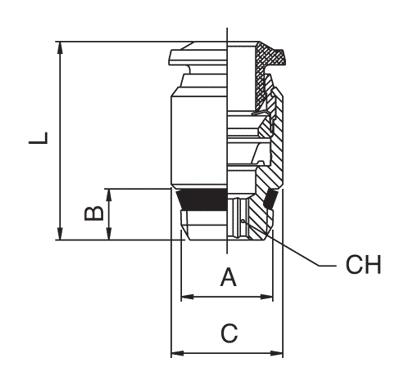

Product Number Tube A B C L CH
57010-4-M5 4 mm M5 4 mm 10 mm 21 mm 2.5 mm
57010-4-M7X1 4 mm M7 x 1 5 mm 10 mm 21 mm 2.5 mm
57010-6-M5 6 mm M5 4 mm 12 mm 24.5 mm 2.5 mm
57010-6-1/8 6 mm 1/8'' 7.5 mm 12 mm 22.5 mm 4 mm
57010-6-1/4 6 mm 1/4'' 11 mm 14 mm 24.5 mm 4 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
