57010-6-M5 AIGNEP | 57 Series | Straight Male Metal Release Collet | Internal Hex 6mm Tube x M5 Male | Pack of 10

57010-6-M5 by AIGNEP | 57 Series | Male Metal Release Collet | Internal Hex 6mm Tube x M5 Male | Straight | Pack of 10

Save $0.13

$12.89

$12.89 - $12.89

$12.89

$12.76

$12.76 - $12.76

$12.76

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 57010-6-M5 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Straight Male With Internal Hex Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

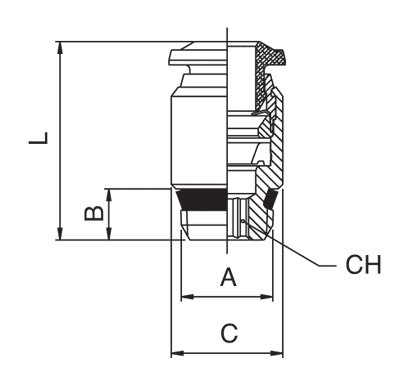

Product Number	Tube	A	B	C	L	CH
57010-4-M5	4 mm	M5	4 mm	10 mm	21 mm	2.5 mm
57010-4-M7X1	4 mm	M7 x 1	5 mm	10 mm	21 mm	2.5 mm
57010-6-M5	6 mm	M5	4 mm	12 mm	24.5 mm	2.5 mm
57010-6-1/8	6 mm	1/8''	7.5 mm	12 mm	22.5 mm	4 mm
57010-6-1/4	6 mm	1/4''	11 mm	14 mm	24.5 mm	4 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
