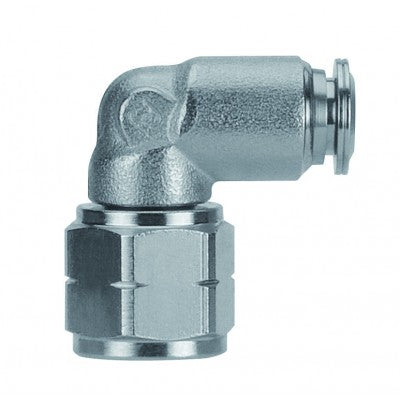

57105-8-1/8" AIGNEP | 57 Series | Swivel Male 90° Elbow Metal Release Collet | 8mm Tube x 1/8" Female BSPP | Pack of 10

57105-8-1/8 by AIGNEP | 57 Series | Swivel Male Metal Release Collet | 8mm Tube x 1/8" Female BSPP | 90° Elbow | Pack of 10

Save $0.38

$37.19

$37.19 - $37.19

$37.19

$36.81

$36.81 - $36.81

$36.81

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 57105-8-1/8 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	90 Degree
Ends Configuration:	8mm Push-to-Connect, 1/8in Female BSPP
Material(s):	Nickel-Plated Brass

Female Swivel Elbow Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Type: BSPP

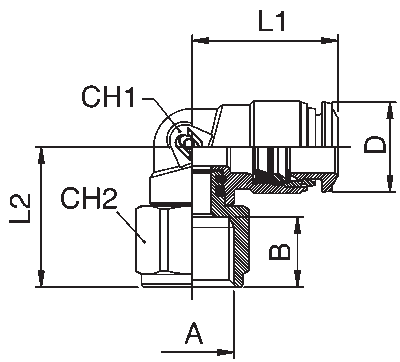

Product Number	Tube	Thread Type	A	B (IN)	B	L1	L2	CH1	CH2
57105-4-1/8	4 mm	BSPP	1/8"	0.334"	8.5 mm	18 mm	20 mm	9 mm	13 mm
57105-4-1/4	4 mm	BSPP	1/4"	0.433"	11 mm	18 mm	21.5 mm	9 mm	16 mm
57105-6-1/8	6 mm	BSPP	1/8"	0.334"	8.5 mm	21 mm	20.5 mm	11 mm	13 mm
57105-6-1/4	6 mm	BSPP	1/4"	0.433"	11 mm	21 mm	23 mm	11 mm	16 mm
57105-8-1/8	8 mm	BSPP	1/8"	0.334"	8.5 mm	22.5 mm	20.5 mm	12 mm	13 mm
57105-8-1/4	8 mm	BSPP	1/4"	0.433"	11 mm	22.5 mm	23 mm	12 mm	16 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
