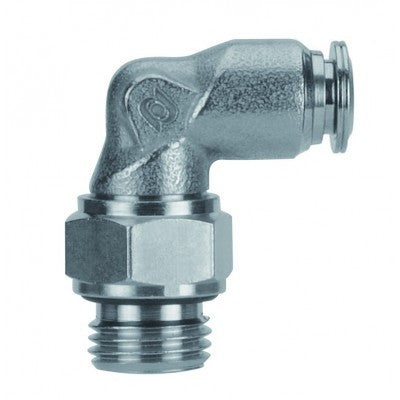

57115-10-3/8" AIGNEP | 57 Series | Swivel Male 90° Elbow Metal Release Collet | 10mm Tube x 3/8" Male BSPP | Pack of 10

57115-10-3/8 by AIGNEP | 57 Series | Swivel Male Metal Release Collet | 10mm Tube x 3/8" Male BSPP | 90° Elbow | Pack of 10

Save $27.97

$69.92

$69.92 - $69.92

$69.92

$41.95

$41.95 - $41.95

$41.95

Package Quantity: 10 ea

Specifications for Variant SKU: 57115-10-3/8 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	90 Degree
Ends Configuration:	10mm Push-to-Connect, 3/8in Male BSPP
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Male Elbow Metallic - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR

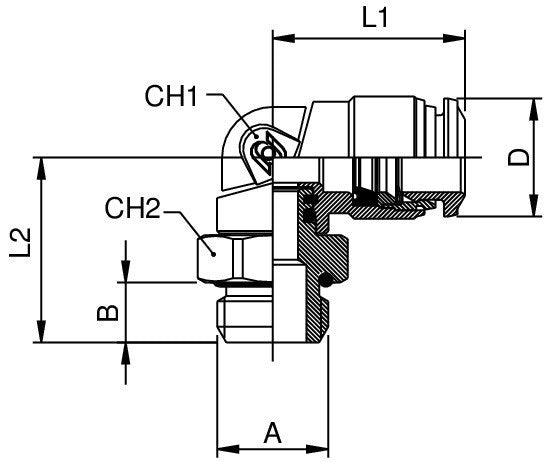

Product Number	Tube	A	B	L1	L2	CH1	CH2	D
57115-4-1/8	4 mm	1/8''	5.5 mm	18 mm	18 mm	9 mm	13 mm	10 mm
57115-4-1/4	4 mm	1/4''	7 mm	18 mm	18 mm	9 mm	16 mm	10 mm
57115-5-1/8	5 mm	1/8''	5.5 mm	20 mm	20 mm	11 mm	13 mm	12.5 mm
57115-6-1/8	6 mm	1/8''	5.5 mm	21 mm	20 mm	11 mm	13 mm	12.5 mm
57115-6-1/4	6 mm	1/4''	7 mm	21 mm	21.5 mm	11 mm	16 mm	12.5 mm
57115-8-1/8	8 mm	1/8''	5.5 mm	22.5 mm	21 mm	12 mm	13 mm	14.5 mm
57115-8-1/4	8 mm	1/4''	7 mm	22.5 mm	21.5 mm	12 mm	16 mm	14.5 mm
57115-8-3/8	8 mm	3/8''	8 mm	22.5 mm	23.5 mm	12 mm	20 mm	14.5 mm
57115-8-1/2	8 mm	1/2''	9.5 mm	22.5 mm	25 mm	12 mm	25 mm	14.5 mm
57115-10-1/4	10 mm	1/4''	7 mm	26.5 mm	25.5 mm	14 mm	16 mm	17.5 mm
57115-10-3/8	10 mm	3/8''	8 mm	26.5 mm	25 mm	14 mm	20 mm	17.5 mm
57115-10-1/2	10 mm	1/2''	9.5 mm	26.5 mm	26.5 mm	14 mm	25 mm	17.5 mm
57115-12-1/4	12 mm	1/4''	8 mm	31.5 mm	27.5 mm	16 mm	20 mm	21.5 mm
57115-12-3/8	12 mm	3/8''	8 mm	31.5 mm	27 mm	16 mm	20 mm	21.5 mm
57115-12-1/2	12 mm	1/2''	9.5 mm	31.5 mm	28.5 mm	16 mm	25 mm	21.5 mm
57115-14-3/8	14 mm	3/8''	8 mm	31.5 mm	27.5 mm	16 mm	20 mm	21.5 mm
57115-14-1/2	14 mm	1/2''	9.5 mm	31.5 mm	29 mm	16 mm	25 mm	21.5 mm
57115-4-M5	4 mm	M5	3.5 mm	18 mm	17.5 mm	9 mm	8 mm	10 mm
57115-5-M5	5 mm	M5	3.5 mm	20 mm	20 mm	11 mm	11 mm	12.5 mm
57115-6-M5	6 mm	M5	3.5 mm	21 mm	20 mm	11 mm	11 mm	12.5 mm
57115-6-M12X1	6 mm	M12 x 1	7.5 mm	20 mm	22 mm	11 mm	16 mm	12.5 mm
57115-6-M12X1.25	6 mm	M12 x 1.25	7.5 mm	20 mm	22 mm	11 mm	16 mm	12.5 mm
57115-6-M12X1.5	6 mm	M12 x 1.5	7.5 mm	20 mm	22 mm	11 mm	16 mm	12.5 mm
