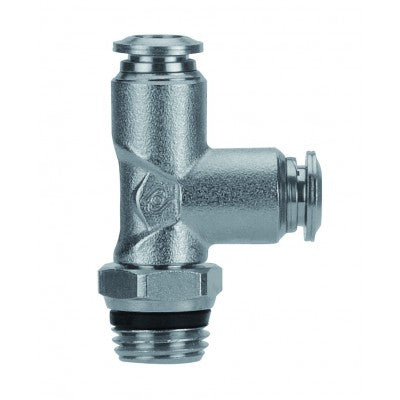

57222-10-1/2" AIGNEP | 57 Series | Swivel Run Tee Metal Release Collet | 10mm Tube x 1/2" Swift-Fit Male Universal Thread | Pack of 10

57222-10-1/2 by AIGNEP | 57 Series | Swivel Run Metal Release Collet | 10mm Tube x 1/2" Swift-Fit Male Universal Thread | Tee | Pack of 10

Save $42.05

$105.12

$105.12 - $105.12

$105.12

$63.07

$63.07 - $63.07

$63.07

Package Quantity: 10 ea

Specifications for Variant SKU: 57222-10-1/2 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	Tee
Ends Configuration:	10mm Push-to-Connect, 1/2in Male Swift-Fit, 10mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Run Tee Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number	Tube	A	B (IN)	B	L1	L2	CH1	CH2	D
57222-6-1/8	6 mm	1/8''	0.216"	5.5 mm	21 mm	22 mm	11 mm	13 mm	12.5 mm
57222-6-1/4	6 mm	1/4''	0.275"	7 mm	21 mm	23.5 mm	11 mm	15 mm	12.5 mm
57222-10-1/4	10 mm	1/4''	0.275"	7 mm	26.5 mm	26 mm	14 mm	16 mm	17.5 mm
57222-10-3/8	10 mm	3/8''	0.295"	7.5 mm	26.5 mm	26 mm	14 mm	17 mm	17.5 mm
57222-10-1/2	10 mm	1/2''	0.354"	9 mm	26.5 mm	28.5 mm	14 mm	21 mm	17.5 mm
57222-12-3/8	12 mm	3/8''	0.295"	7.5 mm	31.5 mm	29.5 mm	16 mm	20 mm	21.5 mm
57222-12-1/2	12 mm	1/2''	0.354"	9 mm	31.5 mm	32 mm	16 mm	21 mm	21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
