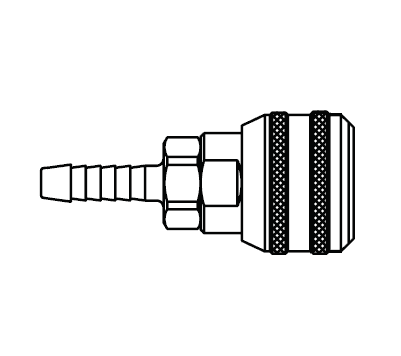

5900SL Eaton 5000 Series Female Socket 3/4 Hose Stem End Connection Pneumatic Quick Disconnect Coupling - Buna-N Seal with Sleeve Lock - Brass

5900SL by Danfoss | 5000 Series | Quick Disconnect Coupling | 3/4 Hose Stem End Connection Pneumatic | Buna-N Seal with Sleeve Lock | Female Socket | Brass

$53.90 - $53.90
$53.90
$53.90 - $53.90
$53.90

Eaton 5000 Series - Quick Disconnect Couplings - Hose Stem Sockets & Plugs
Specifications for Variant SKU: 5900SL Danfoss
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:
  • Industrial Breathing Air
  • General Pneumatics
  • Maintenance & Repair
  • Fluid Transfer
Materials:
  • Standard body material: Brass
  • Standard seal material: Nitrile (NBR)
Specifications:
  • All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
5000 1/2" 35 bar 500 psi 140 bar 2,000 psi 2,040 lpm 72 gpm
Interchangeability
All Sizes 1/4" & 1/2"
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
5000 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
50100 Socket/Female 1/2" 1/4" 1/4-18 Male NPTF Brass 1 2.78"
(70.61mm)		 1.50"
(38.10mm)		 1.00"
(25.40mm)
5100E Socket/Female 1/2" 3/8" 3/8-18 Male NPTF Brass 1 2.79"
(70.87mm)		 1.50"
(38.10mm)		 1.00"
(25.40mm)
5200SL Socket/Female 1/2" 1/2" 1/2-14 Male NPTF Brass NA 3.07"
(77.98mm)		 1.50"
(38.10mm)		 1.00"
(25.40mm)
5300E Socket/Female 1/2" 1/2" 1/2-14 Male NPTF Brass 1 2.98"
(75.69mm)		 1.50"
(38.10mm)		 1.00"
(25.40mm)
5500 Socket/Female 1/2" 3/4" 3/4-14 Male NPTF Brass 1 2.98"
(75.69mm)		 1.50"
(38.10mm)		 1.06"
(26.92mm)
5500SL Socket/Female 1/2" 3/4" - Brass NA 4.10"
(104.14mm)		 1.50"
(38.10mm)		 -
5900SL Socket/Female 1/2" 3/4" 3/4-14 Male NPTF Brass 1 2.98"
(75.69mm)		 1.50"
(38.10mm)		 1.06"
(26.92mm)
5000 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
C D Hex
50E Plug/Male 1/2" 1/4" 1/4-18 Male NPTF Brass 2 2.25"
(57.15mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
50G** Plug/Male 1/2" 1/4" 1/4-18 Male NPTF Brass 2 2.90"
(73.66mm)		 0.98"
(24.89mm)		 0.88"
(22.35mm)
52 Plug/Male 1/2" 3/8" 3/8-18 Male NPTF Brass 2 2.25"
(57.15mm)		 0.87"
(22.10mm)		 0.75"
(19.05mm)
52G** Plug/Male 1/2" 3/8" 3/8-18 Male NPTF Brass 2 2.90"
(73.66mm)		 0.98"
(24.89mm)		 0.88"
(22.35mm)
54E Plug/Male 1/2" 1/2" 1/2-14 Male NPTF Brass 2 2.44"
(61.98mm)		 1.01"
(25.65mm)		 0.88"
(22.35mm)
54G** Plug/Male 1/2" 1/2" 1/2-14 Male NPTF Brass 2 3.09"
(78.49mm)		 0.98"
(24.89mm)		 0.88"
(22.35mm)
56 Plug/Male 1/2" 3/4" 3/4-14 Male NPTF Brass 2 2.50"
(63.50mm)		 1.23"
(31.24mm)		 1.06"
(26.92mm)
56G** Plug/Male 1/2" 3/4" 3/4-14 Male NPTF Brass 2 3.14"
(79.76mm)		 1.19"
(30.23mm)		 1.06"
(26.92mm)
B52 Plug/Male 1/2" 3/8" 3/8-18 Male NPTF Brass 2 2.25"
(57.15mm)		 0.87"
(22.10mm)		 0.75"
(19.05mm)
B54 Plug/Male 1/2" 1/2" 1/2-14 Male NPTF Brass 2 2.44"
(61.98mm)		 1.01"
(25.65mm)		 0.88"
(22.35mm)
