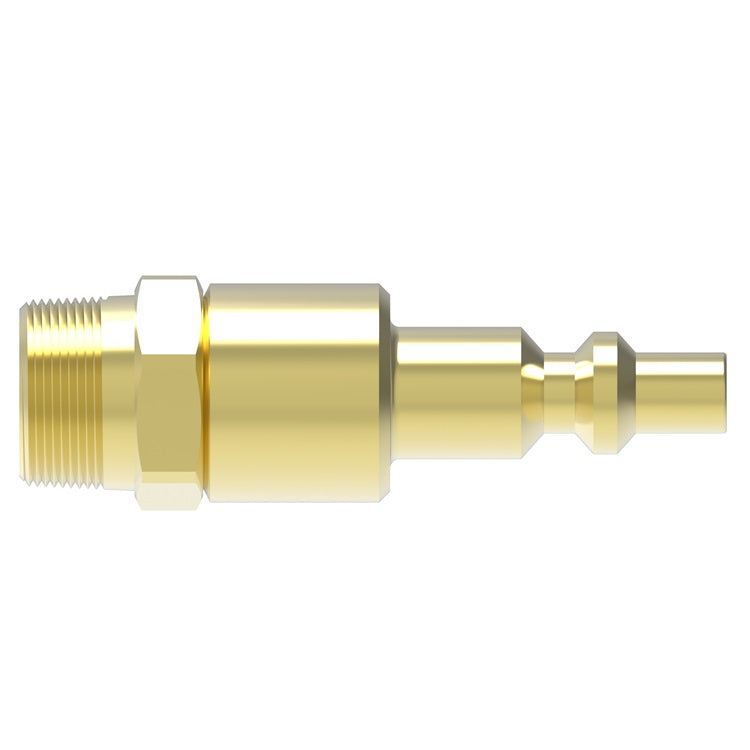

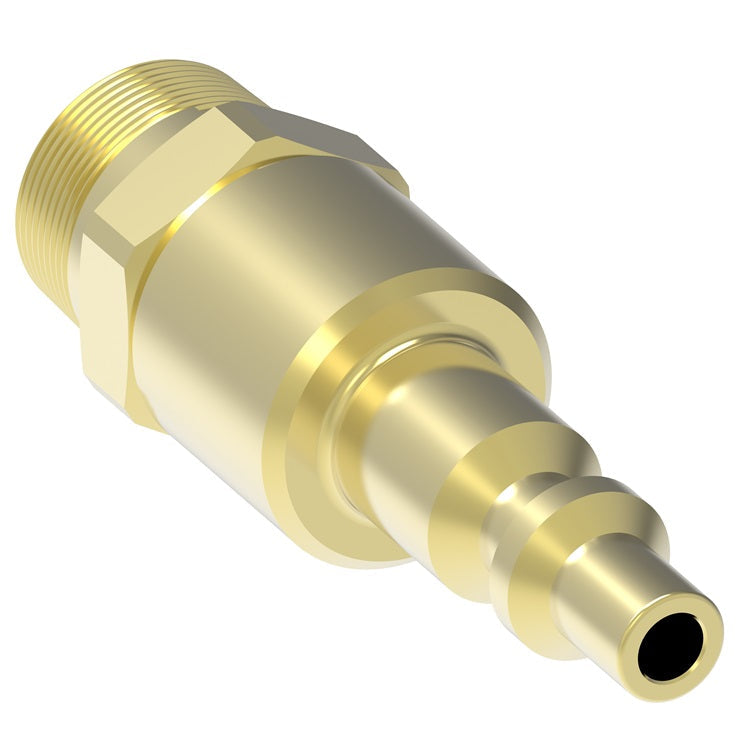

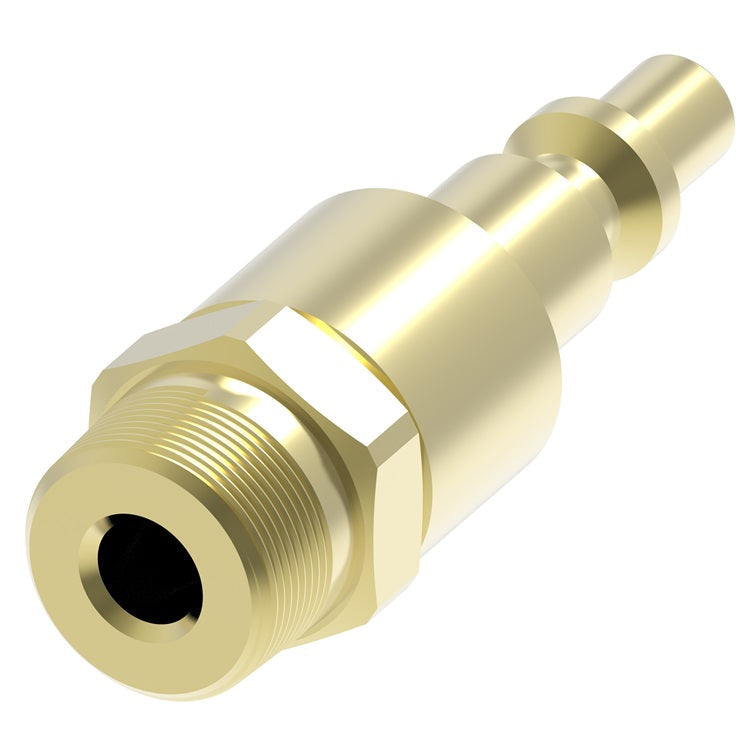

B52 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series / 5000 Series | 3/4" Male NPTF x 1/2" Body Size | Plug | Brass
B52 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series / 5000 Series | 3/4" Male NPTF x 1/2" Body Size | Plug | Brass
B52 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series / 5000 Series | 3/4" Male NPTF x 1/2" Body Size | Plug | Brass
B52 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series / 5000 Series | 3/4" Male NPTF x 1/2" Body Size | Plug | Brass

B52 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series / 5000 Series | 3/4" Male NPTF x 1/2" Body Size | Plug | Brass

$16.21 - $16.21
$16.21
$16.21 - $16.21
$16.21

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 500 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 1000/400/500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.
Specifications for Variant SKU: B52 Danfoss
Brand: Hansen
Series: 500 Series / 5000 Series
Shape (Orientation): Straight
Material(s): Brass
Features:
  • Ball latching mechanism.
  • All sizes accept US Industrial Interchange.
Applications & Markets:
  • General Pneumatics
  • Construction
  • Industrial Plants
Materials:
  • Standard body material: Brass, Steel, Stainless Steel, Nickel Plated Steel Sleeve
  • Standard seal material: Nitrile (NBR)
Specifications:
  • 1/4" & 1/2" accept ISO 6150 B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
500 1/2" 35 bar 500 psi 140 bar 2,000 psi 2,038 lpm 538 gpm
Interchangeability
All Sizes 1/4" & 1/2" 400 Series
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)		 Tru-Flate
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
500 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
501 Socket/Female 1/2" 1/4" 1/4-18 Male NPTF Brass 1 2.77"
(70.36mm)		 1.19"
(30.23mm)		 1.00"
(25.40mm)
530E Socket/Female 1/2" 1/2" 1/2-14 Male NPTF Brass 1 2.97"
(75.44mm)		 1.19"
(30.23mm)		 1.00"
(25.40mm)
550 Socket/Female 1/2" 3/4" 3/4-14 Male NPTF Brass 1 2.97"
(75.44mm)		 1.19"
(30.23mm)		 1.06"
(26.92mm)
500 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
C D Hex
50E Plug/Male 1/2" 1/4" 1/4-18 Male NPTF Brass 2 2.25"
(57.15mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
50G** Plug/Male 1/2" 1/4" 1/4-18 Male NPTF Brass 2 2.90"
(73.66mm)		 0.98"
(24.89mm)		 0.88"
(22.35mm)
52 Plug/Male 1/2" 3/8" 3/8-18 Male NPTF Brass 2 2.25"
(57.15mm)		 0.87"
(22.10mm)		 0.75"
(19.05mm)
52G** Plug/Male 1/2" 3/8" 3/8-18 Male NPTF Brass 2 2.90"
(73.66mm)		 0.98"
(24.89mm)		 0.88"
(22.35mm)
54E Plug/Male 1/2" 1/2" 1/2-14 Male NPTF Brass 2 2.44"
(61.98mm)		 1.01"
(25.65mm)		 0.88"
(22.35mm)
56 Plug/Male 1/2" 3/4" 3/4-14 Male NPTF Brass 2 2.50"
(63.50mm)		 1.23"
(31.24mm)		 1.06"
(26.92mm)
56G** Plug/Male 1/2" 3/4" 3/4-14 Male NPTF Brass 2 3.14"
(79.76mm)		 1.19"
(30.23mm)		 1.06"
(26.92mm)
B52 Plug/Male 1/2" 3/8" 3/8-18 Male NPTF Brass 2 2.25"
(57.15mm)		 0.87"
(22.10mm)		 0.75"
(19.05mm)
B54 Plug/Male 1/2" 1/2" 1/2-14 Male NPTF Brass 2 2.44"
(61.98mm)		 1.01"
(25.65mm)		 0.88"
(22.35mm)

** With Bleeder Ball Check - Reduces Hose Whip.
