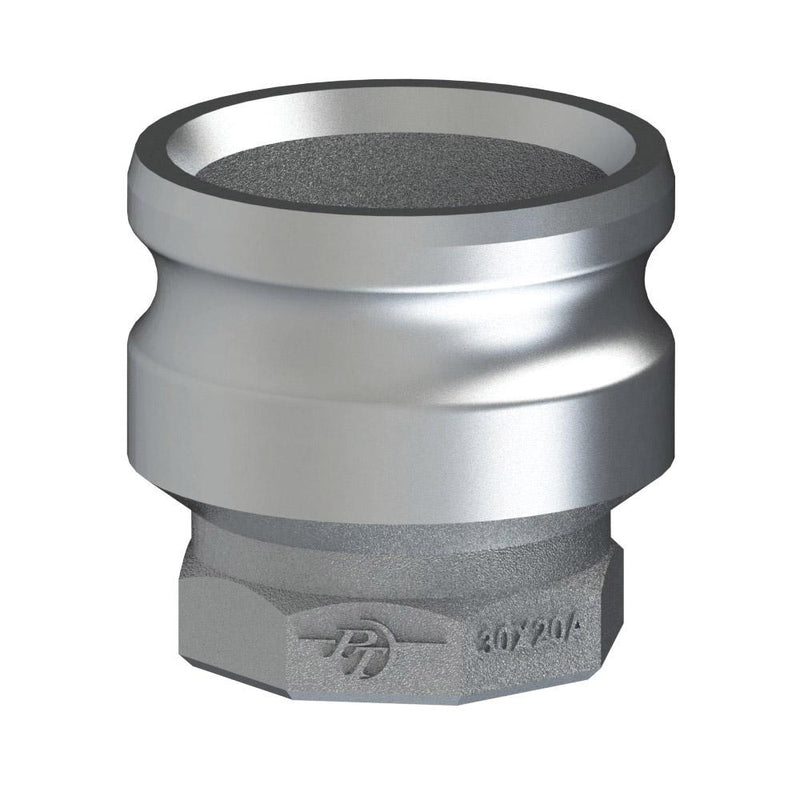

60143020 (30X20A) by PT-Coupling | Reducing Cam & Groove Adapter | Type A | 3" Adapter x 2" Female NPT | Aluminum

60143020 (30X20A) by PT-Coupling | Reducing Cam & Groove Adapter | Type A | 3" Adapter x 2" Female NPT | Aluminum

Save $26.56 Save $26.56
$66.40
$66.40 - $66.40
$66.40
$39.84
$39.84 - $39.84
$39.84

PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type A | Adapter x Female NPT | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 60143020 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 3in Male Cam & Groove, 2in Female NPT
Material(s): Aluminum
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Female NPT
Threads		 Max. Allowable
Working Press.
(PSI)*
07X10A 60220710 3/4" 1" 250 PSI
10X15A 60141015 1" 1-1/2" 250 PSI
15X10A 60141510 1-1/2" 1" 250 PSI
15X20A 60141520 1-1/2" 2" 250 PSI
20X15A 60142015 2" 1-1/2" 250 PSI
20X25A 60142025 2" 2-1/2" 200 PSI
20X30A 60142030 2" 3" 200 PSI
25X15A 60142515 2-1/2" 1-1/2" 200 PSI
25X20A 60142520 2-1/2" 2" 200 PSI
25X30A 60142530 2-1/2" 3" 200 PSI
25X40A 60142540 2-1/2" 4" 150 PSI
30X20A 60143020 3" 2" 200 PSI
30X25A 60143025 3" 2-1/2" 200 PSI
30X40A 60143040 3" 4" 150 PSI
40X25A 60144025 4" 2-1/2" 150 PSI
40X30A 60144030 4" 3" 150 PSI
40X50A 60144050 4" 5" 75 PSI
50X30A 60145030 5" 3" 75 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
