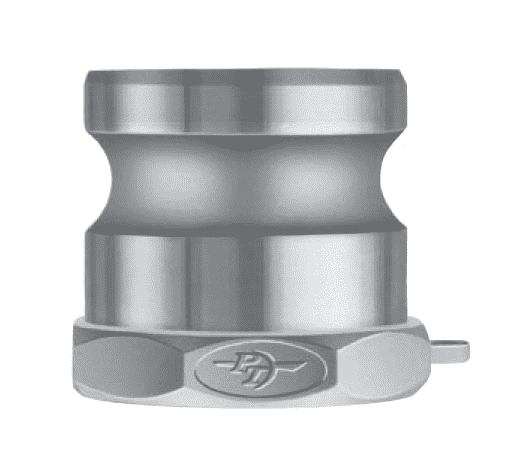

60346000 (60AS) by PT-Coupling | 6" Adapter x 6" Female NPSH | Aluminum | Buna Fuel Resistant Seal

60346000 (60AS) by PT-Coupling | 6" Adapter x 6" Female NPSH | Aluminum | Buna Fuel Resistant Seal

Save $12.03 Save $12.03
$108.27
$108.27 - $108.27
$108.27
$96.24
$96.24 - $96.24
$96.24
Specifications for Variant SKU: 60346000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 6in Male Cam & Groove, 6in Female NPSH
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Straight Threads - Part AS - Adapter x Female Straight Pipe (NPSH) Thread - Aluminum
Features & Applications:
  • Female straight pipe threads are compatible with male NPSH, NPSM and NPT threads.
  • Comes standard with a Buna Fuel Resistant straight thread gasket.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
This Fitting is also Available in the Following Materials:

Part
Name		 Item # Adapter
Size		 Female NPSH
Thread		 Overall
Length
(C)		 Inside
Diameter
(E)		 Across
Corners
(F)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*
07AS 60341075 3/4" 3/4" - - - - 250 PSI
10AS 60341000 1" 1" - - - - 250 PSI
15AS 60341500 1-1/2" 1-1/2" 2.29" 1.35" 2.44" 0.33" 250 PSI
20AS 60342000 2" 2" 2.54" 1.72" 2.92" 0.31" 250 PSI
25AS 60342500 2-1/2" 2-1/2" 2.75" 2.14" 3.49" 0.27" 200 PSI
25X30AS 60342530 2-1/2" 3" 2.75" 2.14" 3.49" 0.27" 200 PSI
30AS 60343000 3" 3" 2.84" 2.80" 4.22" 0.44" 200 PSI
40AS 60344000 4" 4" 3.16" 3.78" 5.41" 0.39" 150 PSI
50AS 60345000 5" 5" 3.22" 4.79" 6.49" 0.35" 75 PSI
60AS 60346000 6" 6" 3.35" 5.90" 7.70" 0.60" 75 PSI
80AS 60348000 8" 8" 4.50" 7.80" 10.23" 0.60" 50 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
