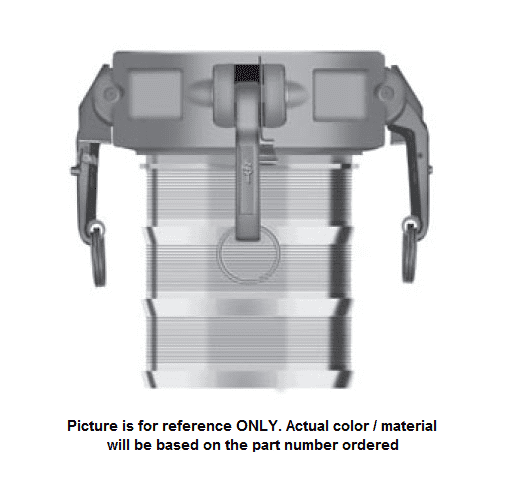

1400360H (60CHD) by PT-Coupling | Heavy Duty 6" Coupler x 6" Hose Shank | 316 Stainless Steel | Buna-N Seal

1400360H (60CHD) by PT-Coupling | Heavy Duty 6" Coupler x 6" Hose Shank | 316 Stainless Steel | Buna-N Seal

Save $92.62 Save $92.62
$833.57
$833.57 - $833.57
$833.57
$740.95
$740.95 - $740.95
$740.95
Specifications for Variant SKU: 1400360H PT-Coupling
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 6in Female Cam & Groove, 6in Hose Barb
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Heavy Duty Couplings - Part CHD - Heavy Duty Coupler x Hose Shank - Stainless Steel
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • 2-1/2" and smaller couplers come standard with 2 cam arms while 3" and larger couplers come with 4 STA-LOK® II cam arms.
  • Made in the USA
This Fitting is also Available in the Following Materials:

Part
Name		 Item # Heavy Duty
Coupler		 Hose Shank
Size		 Max. Allowable
Working Press.
(PSI)*
30CHD 1400330H 3" 3" 400 PSI
40CHD 1400340H 4" 4" 300 PSI
60CHD 1400360H 6" 6" 150 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
