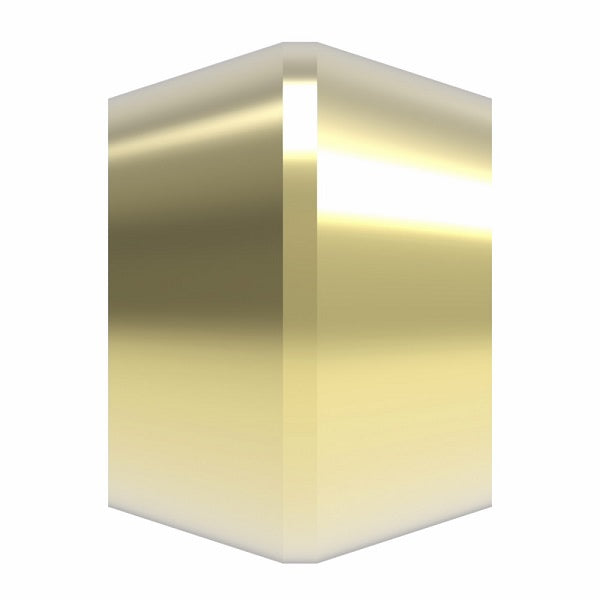

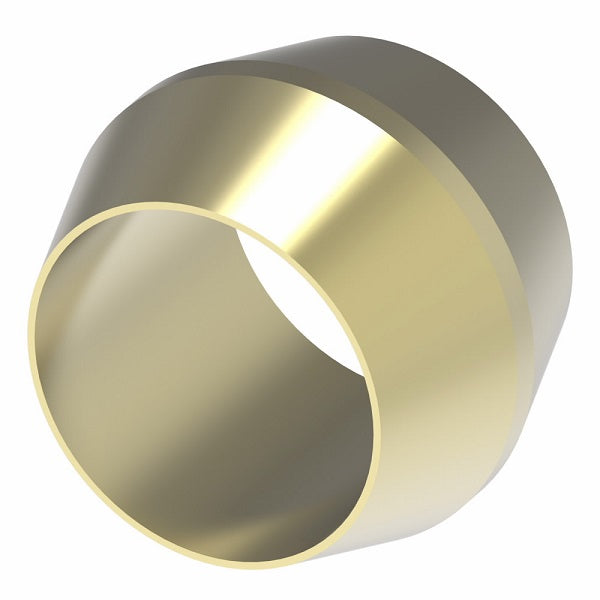

60X4 by Danfoss | Compression Fitting | Sleeve | 1/4" Tube OD | Brass

Name: 60X4 by Danfoss | Compression Fitting | Sleeve | 1/4" Tube OD | Brass
Brand: Danfoss/Eaton
SKU: 60X4 Danfoss
Price: 0.54 USD
Availability: InStock

$0.54 - $0.54

$0.54

$0.54 - $0.54

$0.54

Aeroquip® by Danfoss
Compression Fitting - Sleeve - Straight

Quantity

Specifications for Variant SKU: 60X4 Danfoss
Shape (Orientation):	No Orientation
Material(s):	Brass

Applications:
Instrumentation, hydraulic and pneumatic systems.
Advantages:
Low cost. No flaring. Easy to assemble. Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
CA360 Brass
Pressure:
Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size. When using plastic tubing, use the working pressure for type used.
Temperature Range:
65°F to +250°F (-53°C to +121°C) with metal tubing. When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
Ref. SAE No. 060115 Meets specifications and standards of ASA, ASME and SAE.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	1"
Thread Size	5/16-24	3/8-24	7/16-24	1/2-24	9/16-24	5/8-24	11/16-20	13/16-18	1-18	1-1/4-18


Brass Part Number	Tube O.D.	D	F	L
60X2	1/8"	0.13"	0.19"	0.19"
60X3	3/16"	0.19"	0.27"	0.22"
60X4	1/4"	0.26"	0.34"	0.25"
60X5	5/16"	0.32"	0.41"	0.25"
60X6	3/8"	0.38"	0.47"	0.25"
60X7	7/16"	0.44"	0.53"	0.31"
60X8	1/2"	0.51"	0.59"	0.38"
60X10	5/8"	0.63"	0.72"	0.38"
60X12*	3/4"	0.76"	0.88"	0.44"

* Made To Order

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
