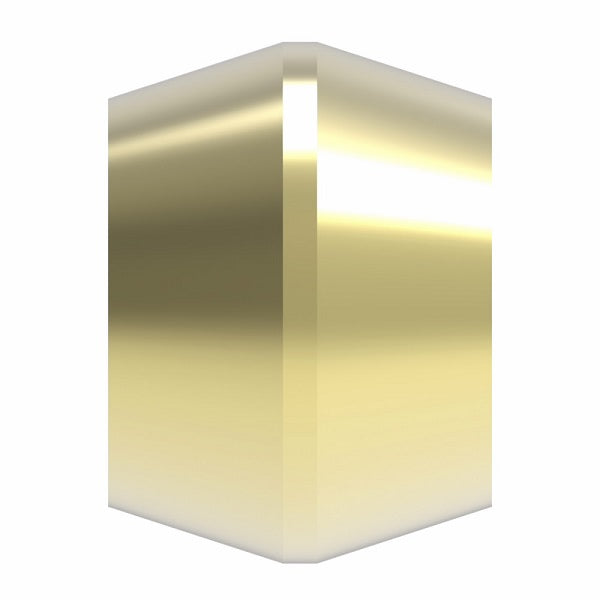

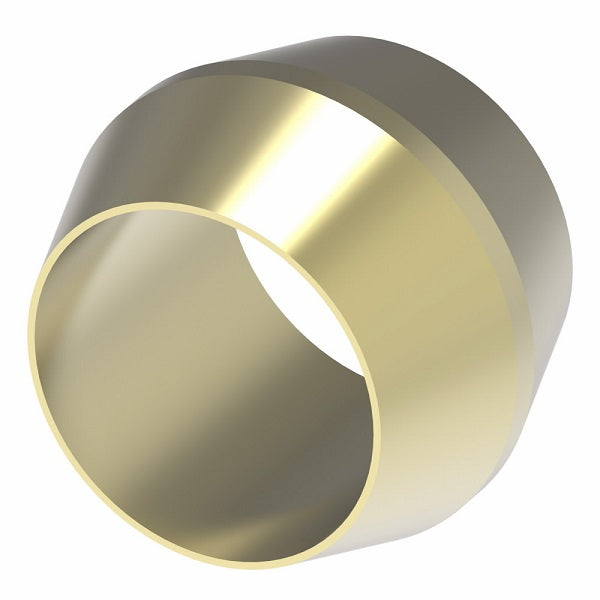

60X6 by Danfoss | Compression Fitting | Sleeve | 3/8" Tube OD | Brass

Name: 60X6 by Danfoss | Compression Fitting | Sleeve | 3/8" Tube OD | Brass
Brand: Danfoss/Eaton
SKU: 60X6 Danfoss
Price: 0.33 USD
Availability: InStock

$0.33 - $0.33

$0.33

$0.33 - $0.33

$0.33

Aeroquip® by Danfoss
Compression Fitting - Sleeve - Straight

Quantity

Specifications for Variant SKU: 60X6 Danfoss
Shape (Orientation):	No Orientation
Material(s):	Brass

Applications:
Instrumentation, hydraulic and pneumatic systems.
Advantages:
Low cost. No flaring. Easy to assemble. Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
CA360 Brass
Pressure:
Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size. When using plastic tubing, use the working pressure for type used.
Temperature Range:
65°F to +250°F (-53°C to +121°C) with metal tubing. When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
Ref. SAE No. 060115 Meets specifications and standards of ASA, ASME and SAE.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	1"
Thread Size	5/16-24	3/8-24	7/16-24	1/2-24	9/16-24	5/8-24	11/16-20	13/16-18	1-18	1-1/4-18


Brass Part Number	Tube O.D.	D	F	L
60X2	1/8"	0.13"	0.19"	0.19"
60X3	3/16"	0.19"	0.27"	0.22"
60X4	1/4"	0.26"	0.34"	0.25"
60X5	5/16"	0.32"	0.41"	0.25"
60X6	3/8"	0.38"	0.47"	0.25"
60X7	7/16"	0.44"	0.53"	0.31"
60X8	1/2"	0.51"	0.59"	0.38"
60X10	5/8"	0.63"	0.72"	0.38"
60X12*	3/4"	0.76"	0.88"	0.44"

* Made To Order
