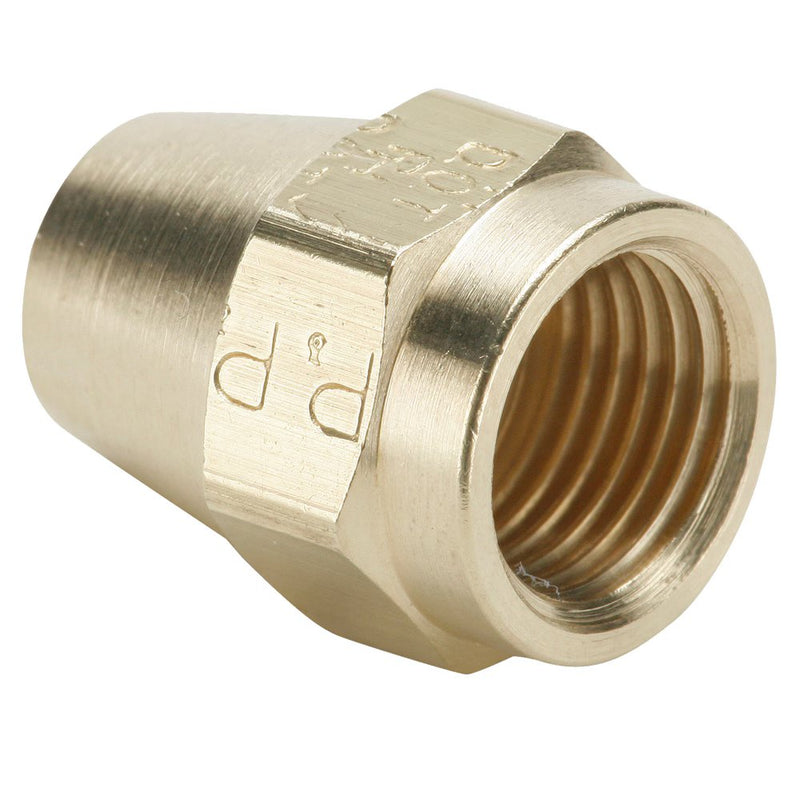

61AB-10 by Parker | Air Brake - AB Fittings | 5/8" Nut x 7/16" Thread | Straight | Brass | Pack of 25

Save $16.75

$184.24

$184.24 - $184.24

$184.24

$167.49

$167.49 - $167.49

$167.49

by Parker Hannifin
Air Brake – AB Fittings:Nut 61AB

Package Quantity: 25 Units

Quantity

Specifications for Variant SKU: 61AB-10 Parker \| 25 \|
Series:	61AB Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Fuel Grade, Reuseable

Specification:
Product Features:	Brass Body Meets D.O.T. FMVSS571.106 Performance Meets functional Requirements SAE J246 Reusable Pre-applied Thread Sealant
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Copper Air Brake Lines Coolant Lines Fuel Lines
Pressure Range:	Up to 400 PSI (27.5 bar)
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:	Copper Air Brake Tubing


Part Number	Tube Size	Straight Thread	Hex (C)	D	L
61AB-4	1/4"	7/16"-24	9/16"	.256"	.75"
61AB-6	3/8"	17/32"-24	5/8"	.384"	1.13"
61AB-8	1/2"	11/16"-20	13/16"	.509"	1.25"
61AB-10	5/8"	13/16"-18	15/16"	.634"	1.38"
61AB-12	3/4"	1"-18	1-1/8"	.760"	1.56"
