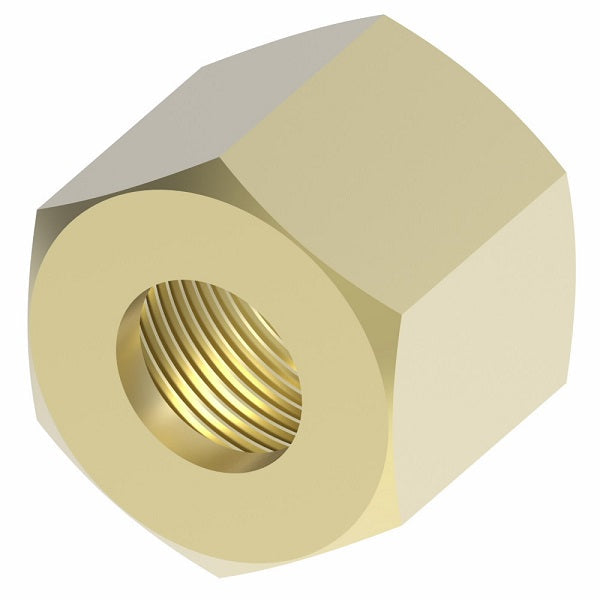

61X8 by Danfoss | Compression Fitting | Nut | 1/2" Tube OD | Brass
61X8 by Danfoss | Compression Fitting | Nut | 1/2" Tube OD | Brass
61X8 by Danfoss | Compression Fitting | Nut | 1/2" Tube OD | Brass
61X8 by Danfoss | Compression Fitting | Nut | 1/2" Tube OD | Brass

61X8 by Danfoss | Compression Fitting | Nut | 1/2" Tube OD | Brass

$1.96 - $1.96
$1.96
$1.96 - $1.96
$1.96

Aeroquip® by Danfoss
Compression Fitting - Nut - Straight
Specifications for Variant SKU: 61X8 Danfoss
Shape (Orientation): No Orientation
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060110
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number 		Tube O.D. Hex
C		 D L
61X2 1/8" 3/8" 0.13" 0.38"
61X3 3/16" 7/16" 0.19" 0.41"
61X4 1/4" 1/2" 0.26" 0.44"
61X5 5/16" 9/16" 0.32" 0.44"
61X6 3/8" 5/8" 0.38" 0.47"
61X7 7/16" 11/16" 0.44" 0.50"
61X8 1/2" 13/16" 0.51" 0.62"
61X10 5/8" 15/16" 0.63" 0.62"
