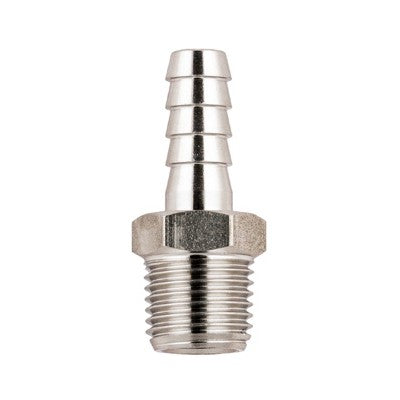

62340-18-3/4" AIGNEP | 60/62 Series | Male Hose Barb Adapter | 18mm x 3/4" BSPT Male

62340-18-3/4 by AIGNEP | 60/62 Series | Male Hose Barb Adapter | 18mm x 3/4" BSPT Male

Name: 62340-18-3/4 by AIGNEP | 60/62 Series | Male Hose Barb Adapter | 18mm x 3/4" BSPT Male
Brand: AIGNEP
SKU: 62340-18-3/4 AIGNEP
Price: 17.01 USD
Availability: InStock

Save $0.18

$17.19

$17.19 - $17.19

$17.19

$17.01

$17.01 - $17.01

$17.01

Quantity

Specifications for Variant SKU: 62340-18-3/4 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Straight
Ends Configuration:	18mm Hose Barb, 3/4in Male BSPT
Material(s):	Stainless Steel

Male Hose Adapter - BSPT

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

< < < < < < < < < < < < < < < < < < <

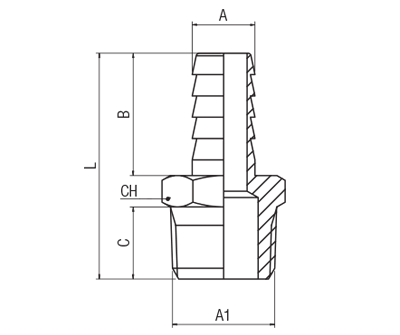

Product Number	A1 BSPT	A	B	C	L	CH
62340-6-1/8	1/8"	6 mm	19.5 mm	7.5 mm	32 mm	11 mm
62340-7-1/8	1/8"	7 mm	19.5 mm	7.5 mm	32 mm	11 mm
62340-7-1/4	1/4"	7 mm	19.5 mm	11 mm	35.5 mm	14 mm
62340-8-1/4	1/4"	8 mm	19.5 mm	11 mm	35.5 mm	14 mm
62340-9-1/4	1/4"	9 mm	19.5 mm	11 mm	35.5 mm	14 mm
62340-9-3/8	3/8"	9 mm	19.5 mm	11.5 mm	36 mm	17 mm
62340-10-1/4	1/4"	10 mm	19.5 mm	11 mm	35.5 mm	14 mm
62340-10-3/8	3/8"	10 mm	19.5 mm	11.5 mm	36 mm	17 mm
62340-10-1/2	1/2"	10 mm	19.5 mm	14 mm	39 mm	22 mm
62340-12-1/4	1/4"	12 mm	19.5 mm	11 mm	35.5 mm	14 mm
62340-12-3/8	3/8"	12 mm	19.5 mm	11.5 mm	36 mm	17 mm
62340-12-1/2	1/2"	12 mm	19.5 mm	14 mm	39 mm	22 mm
62340-14-3/8	3/8"	14 mm	19.5 mm	11.5 mm	36 mm	17 mm
62340-14-1/2	1/2"	14 mm	19.5 mm	14 mm	39 mm	22 mm
62340-16-1/2	1/2"	16 mm	19.5 mm	14 mm	39 mm	22 mm
62340-18-1/2	1/2"	18 mm	19.5 mm	14 mm	39 mm	22 mm
62340-18-3/4	3/4"	18 mm	19.5 mm	16.5 mm	43.5 mm	27 mm
62340-20-1/2	1/2"	20 mm	19.5 mm	14 mm	39 mm	22 mm
62340-20-3/4	3/4"	20 mm	19.5 mm	13.5 mm	40 mm	27 mm
