62340-7-1/8" AIGNEP | 60/62 Series | Male Hose Barb Adapter | 7mm x 1/8" BSPT Male
62340-7-1/8 by AIGNEP | 60/62 Series | Male Hose Barb Adapter | 7mm x 1/8" BSPT Male
62340-7-1/8" AIGNEP | 60/62 Series | Male Hose Barb Adapter | 7mm x 1/8" BSPT Male

62340-7-1/8 by AIGNEP | 60/62 Series | Male Hose Barb Adapter | 7mm x 1/8" BSPT Male

Save $5.80 Save $5.80
$12.57
$12.57 - $12.57
$12.57
$6.77
$6.77 - $6.77
$6.77
Specifications for Variant SKU: 62340-7-1/8 AIGNEP
Series: 60/62 Series
Shape (Orientation): Straight
Ends Configuration: 7mm Hose Barb, 1/8in Male BSPT
Material(s): Stainless Steel

Male Hose Adapter - BSPT

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

< < < < < < < < < < < < < < < < < < <

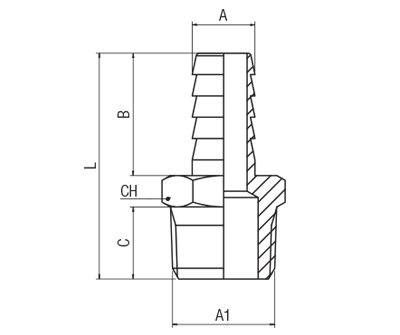

Product Number A1 BSPT A B C L CH
62340-6-1/8 1/8" 6 mm 19.5 mm 7.5 mm 32 mm 11 mm
62340-7-1/8 1/8" 7 mm 19.5 mm 7.5 mm 32 mm 11 mm
62340-7-1/4 1/4" 7 mm 19.5 mm 11 mm 35.5 mm 14 mm
62340-8-1/4 1/4" 8 mm 19.5 mm 11 mm 35.5 mm 14 mm
62340-9-1/4 1/4" 9 mm 19.5 mm 11 mm 35.5 mm 14 mm
62340-9-3/8 3/8" 9 mm 19.5 mm 11.5 mm 36 mm 17 mm
62340-10-1/4 1/4" 10 mm 19.5 mm 11 mm 35.5 mm 14 mm
62340-10-3/8 3/8" 10 mm 19.5 mm 11.5 mm 36 mm 17 mm
62340-10-1/2 1/2" 10 mm 19.5 mm 14 mm 39 mm 22 mm
62340-12-1/4 1/4" 12 mm 19.5 mm 11 mm 35.5 mm 14 mm
62340-12-3/8 3/8" 12 mm 19.5 mm 11.5 mm 36 mm 17 mm
62340-12-1/2 1/2" 12 mm 19.5 mm 14 mm 39 mm 22 mm
62340-14-3/8 3/8" 14 mm 19.5 mm 11.5 mm 36 mm 17 mm
62340-14-1/2 1/2" 14 mm 19.5 mm 14 mm 39 mm 22 mm
62340-16-1/2 1/2" 16 mm 19.5 mm 14 mm 39 mm 22 mm
62340-18-1/2 1/2" 18 mm 19.5 mm 14 mm 39 mm 22 mm
62340-18-3/4 3/4" 18 mm 19.5 mm 16.5 mm 43.5 mm 27 mm
62340-20-1/2 1/2" 20 mm 19.5 mm 14 mm 39 mm 22 mm
62340-20-3/4 3/4" 20 mm 19.5 mm 13.5 mm 40 mm 27 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
