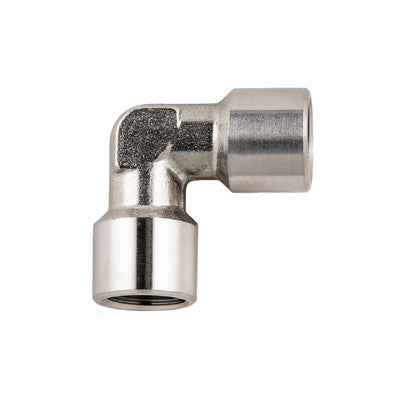

62510-1/8" AIGNEP | 60/62 Series | Female 90° Elbow | 1/8" BSPP Female x 1/8" BSPP Female

62510-1/8 by AIGNEP | 60/62 Series | 1/8" BSPP Female x 1/8" BSPP Female | 90° Elbow

Name: 62510-1/8 by AIGNEP | 60/62 Series | 1/8" BSPP Female x 1/8" BSPP Female | 90° Elbow
Brand: AIGNEP
SKU: 62510-1/8 AIGNEP
Price: 16.73 USD
Availability: InStock

Save $0.17

$16.90

$16.90 - $16.90

$16.90

$16.73

$16.73 - $16.73

$16.73

Quantity

Specifications for Variant SKU: 62510-1/8 AIGNEP
Series:	60/62 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/8in Female BSPP, 1/8in Female BSPP, Some Ends Match
Material(s):	Stainless Steel

Female x Female Elbow - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ? F - 572 ? F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

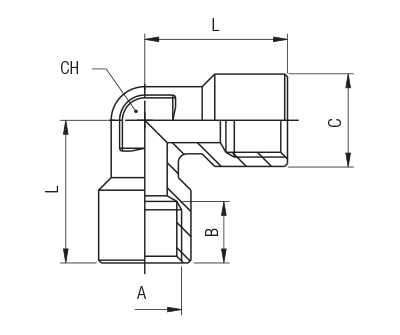

Product Number	A BSPP	B	C	L	CH
62510-1/8	1/8"	8.5 mm	13 mm	21 mm	10 mm
62510-1/4	1/4"	11 mm	16.5 mm	25.5 mm	12 mm
62510-3/8	3/8"	12 mm	20.5 mm	28.5 mm	15 mm
62510-1/2	1/2"	15 mm	25.5 mm	32 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
