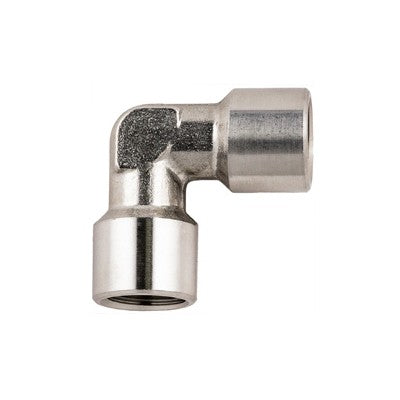

62510-1/2" AIGNEP | 60/62 Series | Female 90° Elbow | 1/2" BSPP Female x 1/2" BSPP Female
62510-1/2 by AIGNEP | 60/62 Series | Female | 1/2" BSPP Female x 1/2" BSPP Female | 90° Elbow
62510-1/2" AIGNEP | 60/62 Series | Female 90° Elbow | 1/2" BSPP Female x 1/2" BSPP Female

62510-1/2 by AIGNEP | 60/62 Series | Female | 1/2" BSPP Female x 1/2" BSPP Female | 90° Elbow

Save $15.96 Save $15.96
$63.33
$63.33 - $63.33
$63.33
$47.37
$47.37 - $47.37
$47.37
Specifications for Variant SKU: 62510-1/2 AIGNEP
Series: 60/62 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female BSPP, 1/2in Female BSPP, Some Ends Match
Material(s): Stainless Steel

Female x Female Elbow - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ? F - 572 ? F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

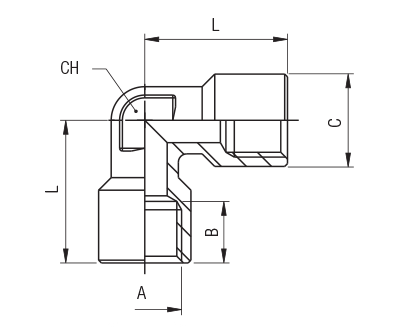

Product Number A BSPP B C L CH
62510-1/8 1/8" 8.5 mm 13 mm 21 mm 10 mm
62510-1/4 1/4" 11 mm 16.5 mm 25.5 mm 12 mm
62510-3/8 3/8" 12 mm 20.5 mm 28.5 mm 15 mm
62510-1/2 1/2" 15 mm 25.5 mm 32 mm 20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
