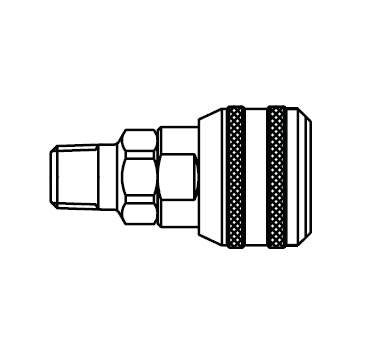

6500SL Eaton 6000 Series Female Socket - 3/4-14 Male NPTF End Connection Pneumatic Quick Disconnect Coupling with Sleeve Lock - Brass

6500SL by Danfoss | 6000 Series | Quick Disconnect Coupling | 3/4-14 Male NPTF End Connection Pneumatic with Sleeve Lock | Female Socket | Brass

$81.65 - $81.65
$81.65
$81.65 - $81.65
$81.65

Eaton 6000 Series - Quick Disconnect Couplings - Male NPTF Sockets & Plugs
Specifications for Variant SKU: 6500SL Danfoss
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:
  • Industrial Breathing Air
  • General Pneumatics
  • Maintenance & Repair
  • Fluid Transfer
Materials:
  • Standard body material: Brass
  • Standard seal material: Nitrile (NBR)
Specifications:
  • All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
6000 3/4" 15 bar 220 psi 60 bar 880 psi 3,540 lpm 125 gpm
Interchangeability
All Sizes 1/4" & 1/2"
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
6000 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
6300 Socket/Female 3/4" 1/2" 1/2-14 Male NPTF Brass 1 2.94"
(74.68mm)		 1.90"
(48.26mm)		 1.31"
(33.27mm)
6500 Socket/Female 3/4" 3/4" 3/4-14 Male NPTF Brass 1 2.94"
(74.68mm)		 1.90"
(48.26mm)		 1.31"
(33.27mm)
6500SL Socket/Female 3/4" 3/4" 3/4-14 Male NPTF Brass 1 2.94"
(74.68mm)		 1.90"
(48.26mm)		 1.31"
(33.27mm)
6700E Socket/Female 3/4" 1" 1-11-1/2 Male NPTF Brass 1 3.13"
(79.50mm)		 1.90"
(48.26mm)		 1.31"
(33.27mm)
6900SL Socket/Female 3/4" 3/4" Hose Barb Brass NA 3.21"
(79.50mm)		 1.88"
(48.26mm)		 1.31"
(33.27mm)
6000 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
C D Hex
64A Plug/Male 3/4" 1/2" 1/2-14 Male NPTF Steel 2 2.31"
(58.67mm)		 1.15"
(29.21mm)		 1.00"
(25.40mm)
64GA** Plug/Male 3/4" 1/2" 1/2-14 Male NPTF Steel 2 3.26"
(82.80mm)		 1.12"
(28.45mm)		 1.00"
(25.40mm)
66AE Plug/Male 3/4" 3/4" 3/4-14 Male NPTF Steel 2 2.38"
(60.45mm)		 1.23"
(31.24mm)		 1.06"
(26.92mm)
66GA** Plug/Male 3/4" 3/4" 3/4-14 Male NPTF Steel 2 3.26"
(82.80mm)		 1.19"
(30.23mm)		 1.06"
(26.92mm)
68A Plug/Male 3/4" 1" 1-11-1/2 Male NPTF Steel 2 2.56"
(65.02mm)		 1.51"
(38.35mm)		 1.31"
(33.27mm)
B64A Plug/Male 3/4" 1/2" 1/2-14 Male NPTF Brass 2 2.31"
(58.67mm)		 1.12"
(28.45mm)		 1.00"
(25.40mm)
B66A Plug/Male 3/4" 3/4" 3/4-14 Male NPTF Brass 2 4.06"
(103.12mm)		 1.88"
(47.75mm)		 -

** With Bleeder Ball Check - Reduces Hose Whip
