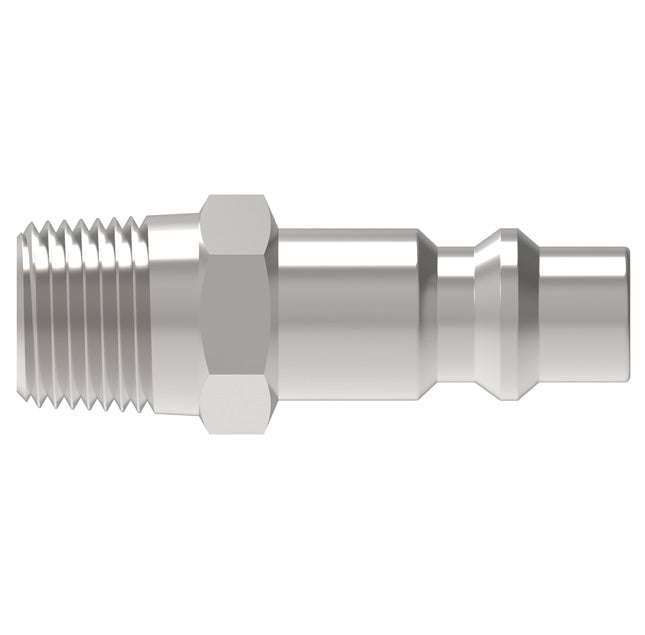

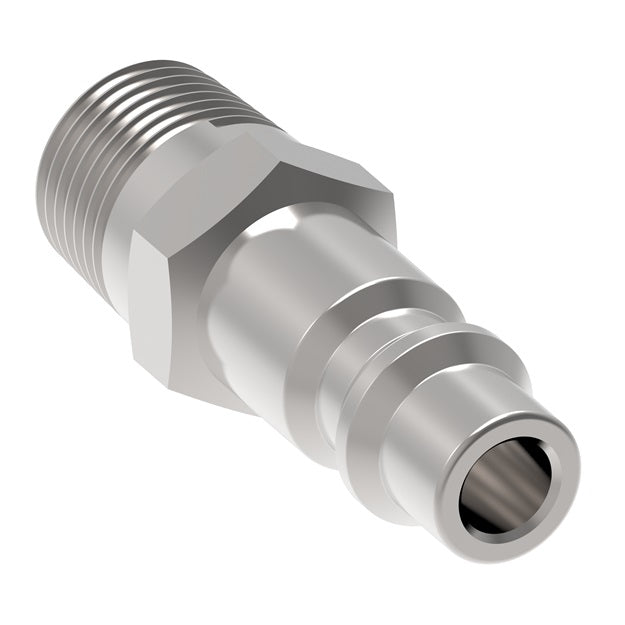

66GA Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 6000 Series | 3/4" Male NPTF x 3/4" Body Size | Plug | With Bleeder Ball Check | Steel

66GA Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 6000 Series | 3/4" Male NPTF x 3/4" Body Size | Plug | With Bleeder Ball Check | Steel

$41.05 - $41.05
$41.05
$41.05 - $41.05
$41.05

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 6000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 3000/4000/5000/6000 Series Industrial Interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids.

This series sets the industry standard for pin lock style pneumatic couplings.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 66GA Danfoss
Brand: Hansen
Series: 6000 Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:
  • Industrial Breathing Air
  • General Pneumatics
  • Maintenance & Repair
  • Fluid Transfer
Materials:
  • Standard body material: Brass
  • Standard seal material: Nitrile (NBR)
Specifications:
  • All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
6000 3/4" 15 bar 220 psi 60 bar 880 psi 3,540 lpm 125 gpm
Interchangeability
All Sizes 1/4" & 1/2"
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
6000 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
6300 Socket/Female 3/4" 1/2" 1/2-14 Male NPTF Brass 1 2.94"
(74.68mm)		 1.90"
(48.26mm)		 1.31"
(33.27mm)
6500 Socket/Female 3/4" 3/4" 3/4-14 Male NPTF Brass 1 2.94"
(74.68mm)		 1.90"
(48.26mm)		 1.31"
(33.27mm)
6700E Socket/Female 3/4" 1" 1-11-1/2 Male NPTF Brass 1 3.13"
(79.50mm)		 1.90"
(48.26mm)		 1.31"
(33.27mm)
6000 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
C D Hex
64A Plug/Male 3/4" 1/2" 1/2-14 Male NPTF Steel 2 2.31"
(58.67mm)		 1.15"
(29.21mm)		 1.00"
(25.40mm)
64GA** Plug/Male 3/4" 1/2" 1/2-14 Male NPTF Steel 2 3.26"
(82.80mm)		 1.12"
(28.45mm)		 1.00"
(25.40mm)
66AE Plug/Male 3/4" 3/4" 3/4-14 Male NPTF Steel 2 2.38"
(60.45mm)		 1.23"
(31.24mm)		 1.06"
(26.92mm)
66GA** Plug/Male 3/4" 3/4" 3/4-14 Male NPTF Steel 2 3.26"
(82.80mm)		 1.19"
(30.23mm)		 1.06"
(26.92mm)
68A Plug/Male 3/4" 1" 1-11-1/2 Male NPTF Steel 2 2.56"
(65.02mm)		 1.51"
(38.35mm)		 1.31"
(33.27mm)
B64A Plug/Male 3/4" 1/2" 1/2-14 Male NPTF Brass 2 2.31"
(58.67mm)		 1.12"
(28.45mm)		 1.00"
(25.40mm)
B66A Plug/Male 3/4" 3/4" 3/4-14 Male NPTF Brass 2 2.38"
(60.45mm)		 1.18"
(30.07mm)		 1.06"
(26.92mm)

** With Bleeder Ball Check - Reduces Hose Whip
