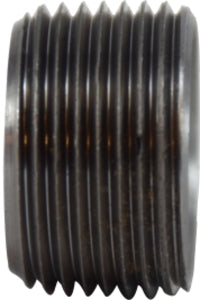

67704 (67-704) Midland Steel Fitting - Face Bushing - 1/2" Male NPTF x 1/4" Female NPTF - Black Steel

67704 by Midland | Face Bushing | 1/2" Male NPTF x 1/4" Female NPTF Fitting | Black Steel

Save $0.31 Save $0.31
$1.97
$1.97 - $1.97
$1.97
$1.66
$1.66 - $1.66
$1.66

Midland Industries
Steel Fitting - Face Bushing - Male NPTF x Female NPTF - Black Steel

Lead Free

Pressure rating: 150/300 PSI

Inventory @ Manufacturers Warehouse: 94 Units
Specifications for Variant SKU: 67704 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 1/4in Female NPTF
Material(s): Black Steel
Applicable Specs & Approvals: ASME B16.14, ROHS Compliant
Features:
  • This will certify that the material was manufactured in accordance with ASME B16.14 - 1991 Standards. All Threads are Dryseal (NPTF) - 3/4 inch taper per foot and are made of Carbon Steel 12L14.
  • Clear Zinc plating specifications ASTM B633-07
  • Type III with supplemental clear Trivalent chromate.
  • .00015" Zinc (Minimum)
Specifications:
  • Federal Specification QQ-Z-325 (Zinc Plate)
  • ROHS Compliant
Part Number Male NPTF x Female NPTF A Approx. Weight
(Lbs.)
67700
(67-700)		 1/4" x 1/8" 0.44" 0.01
67701
(67-701)		 3/8" x 1/8" 0.48" 0.02
67702
(67-702)		 3/8" x 1/4" 0.48" 0.02
67703
(67-703)		 1/2" x 1/8" 0.56" 0.04
67704
(67-704)		 1/2" x 1/4" 0.56" 0.04
67705
(67-705)		 1/2" x 3/8" 0.56" 0.04
67707
(67-707)		 3/4" x 1/4" 0.62" 0.12
67708
(67-708)		 3/4" x 3/8" 0.62" 0.10
67709
(67-709)		 3/4" x 1/2" 0.62" 0.10
67711
(67-711)		 1" x 3/8" 0.75" 0.18
67712
(67-712)		 1" x 1/2" 0.75" 0.16
67713
(67-713)		 1" x 3/4" 0.75" 0.16
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
