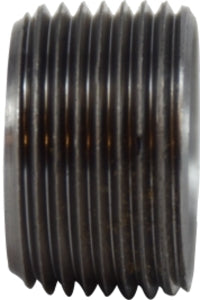

67708 (67-708) by Midland | Steel Fitting | Face Bushing | 3/4" Male NPTF x 3/8" Female NPTF | Straight | Black Steel

Save $1.62

$4.05

$4.05 - $4.05

$4.05

$2.43

$2.43 - $2.43

$2.43

Midland Industries
Steel Fitting - Face Bushing - Male NPTF x Female NPTF - Black Steel

Lead Free

Pressure rating: 150/300 PSI

Inventory @ Manufacturers Warehouse: 50 Units

Specifications for Variant SKU: 67708 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPTF, 3/8in Female NPTF, Some Ends Match
Material(s):	Black Steel
Applicable Specs & Approvals:	ASME B16.14 - 1991, ROHS Compliant

Features:
This will certify that the material was manufactured in accordance with ASME B16.14 - 1991 Standards. All Threads are Dryseal (NPTF) - 3/4 inch taper per foot and are made of Carbon Steel 12L14. Clear Zinc plating specifications ASTM B633-07 Type III with supplemental clear Trivalent chromate. .00015" Zinc (Minimum)
Specifications:
Federal Specification QQ-Z-325 (Zinc Plate) ROHS Compliant


Part Number	Male NPTF x Female NPTF	A	Approx. Weight (Lbs.)
67700 (67-700)	1/4" x 1/8"	0.44"	0.01
67701 (67-701)	3/8" x 1/8"	0.48"	0.02
67702 (67-702)	3/8" x 1/4"	0.48"	0.02
67703 (67-703)	1/2" x 1/8"	0.56"	0.04
67704 (67-704)	1/2" x 1/4"	0.56"	0.04
67705 (67-705)	1/2" x 3/8"	0.56"	0.04
67707 (67-707)	3/4" x 1/4"	0.62"	0.12
67708 (67-708)	3/4" x 3/8"	0.62"	0.10
67709 (67-709)	3/4" x 1/2"	0.62"	0.10
67711 (67-711)	1" x 3/8"	0.75"	0.18
67712 (67-712)	1" x 1/2"	0.75"	0.16
67713 (67-713)	1" x 3/4"	0.75"	0.16

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
