6809 by Danfoss | Ground Plug Drain | Female Pipe Double | 1/4" Female NPTF x 1/4" Female NPTF | Brass
6809 by Danfoss | Ground Plug Drain | Female Pipe Double | 1/4" Female NPTF x 1/4" Female NPTF | Brass
6809 by Danfoss | Ground Plug Drain | Female Pipe Double | 1/4" Female NPTF x 1/4" Female NPTF | Brass
6809 by Danfoss | Ground Plug Drain | Female Pipe Double | 1/4" Female NPTF x 1/4" Female NPTF | Brass

6809 by Danfoss | Ground Plug Drain | Female Pipe Double | 1/4" Female NPTF x 1/4" Female NPTF | Brass

$22.25 - $22.25
$22.25
$22.25 - $22.25
$22.25

Aeroquip® by Danfoss

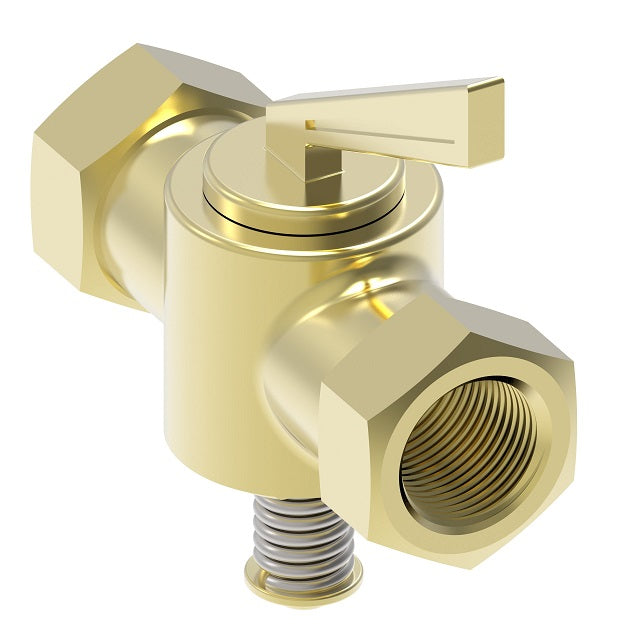

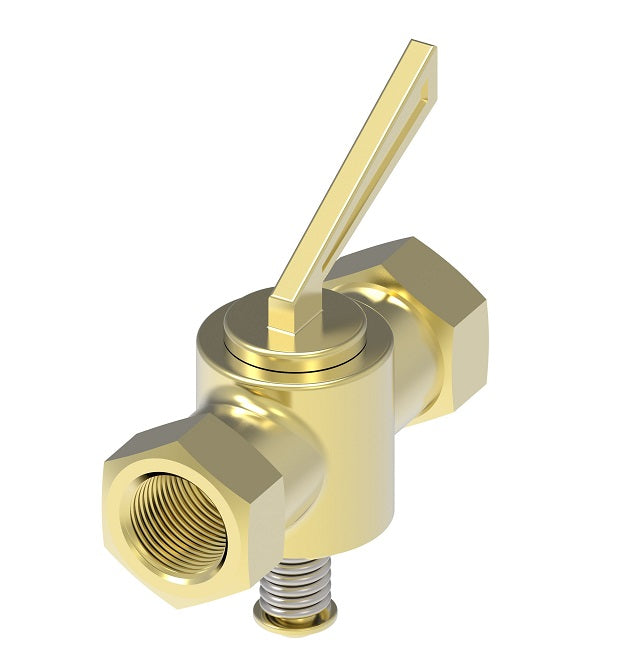

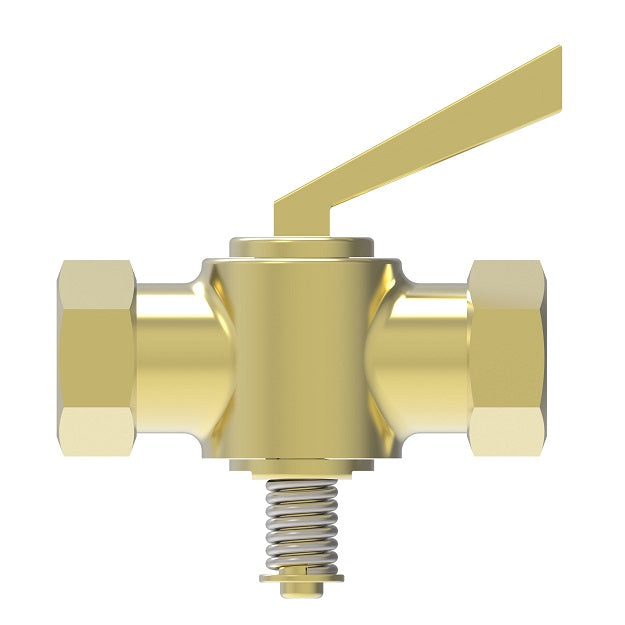

Ground Plug Drain - Female Pipe Double
Specifications for Variant SKU: 6809 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s): Brass
Applications:
  • Designed for automotive or industrial use.
Used With:
  • Copper, aluminum, steel and plastic tubing where applicable.
Material:
  • Brass bodies and handles.
Pressure:
  • 30 psi working pressure, except where noted.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • For use with plastic tubing, refer to the tubing temperature range.
Conformance:
  • Not intended for natural gas, LPG, nuclear or aircraft applications, except as noted.
Note:
  • Ground Plug Drains and Shut-Offs use a universal lubricant satisfactory for use with most common fluids. However the lubricant may wash out at higher pressures or with some exotic fluids.
Brass
Part Number 		Female Pipe Thread L M
6804 1/8" 1.46" 1.88"
6809 1/4" 1.70" 1.88"
