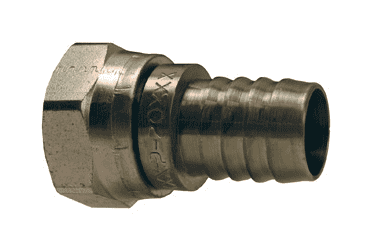

688-16 Dixon Plated Steel Hydraulic Suction and Return Line Hose Stem - 1" Hose ID x 1-5/16"-12 Female SAE (JIC) 37 deg. Swivel

688-16 Dixon Valve Plated Steel Hydraulic Suction and Return Line Hose Stem - 1" Hose ID x 1-5/16"-12 Female SAE (JIC) 37 deg. Swivel

Save $5.44 Save $5.44
$48.92
$48.92 - $48.92
$48.92
$43.48
$43.48 - $43.48
$43.48

Hydraulic Suction and Return Line Hose Fittings - Stems - Female SAE (JIC) 37 deg. Swivel - Plated Steel
Specifications for Variant SKU: 688-16 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Hose Barb, 1in Female JIC
Material(s): Plated Steel
Features:
  • Designed and machined for hydraulic suction line applications using SAE100R4 hydraulic hose.
  • Barbs provide easy assembly and maximum gripping action.
  • Note: Return line clamps must be used with these fittings.
Part Number Hose ID Female SAE Thread Weight (Lbs.)
688-12 3/4" 1-1/16"-12 0.2765
688-16 1" 1-5/16"-12 0.3700
688-20 1-1/4" 1-5/8"-12 0.8400
688-24 1-1/2" 1-7/8"-12 1.1400
688-32 2" 2-1/2"-12 2.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
