  2. 688-24 Dixon Valve Plated Steel Hydraulic Suction and Return Line Hose Stem - 1-1/2" Hose ID x 1-7/8"-12 Female SAE (JIC) 37 deg. Swivel

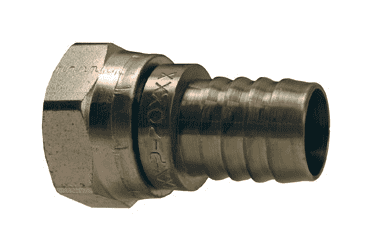

688-24 Dixon Valve Plated Steel Hydraulic Suction and Return Line Hose Stem - 1-1/2" Hose ID x 1-7/8"-12 Female SAE (JIC) 37 deg. Swivel

  • $54.83
Zoom image

688-24 Dixon Valve Plated Steel Hydraulic Suction and Return Line Hose Stem - 1-1/2" Hose ID x 1-7/8"-12 Female SAE (JIC) 37 deg. Swivel

  • $54.83

Hydraulic Suction and Return Line Hose Fittings - Stems - Female SAE (JIC) 37 deg. Swivel - Plated Steel

Trustpilot
Features:
  • Designed and machined for hydraulic suction line applications using SAE100R4 hydraulic hose.
  • Barbs provide easy assembly and maximum gripping action.
  • Note: Return line clamps must be used with these fittings.
Part Number Hose ID Female SAE Thread Weight (Lbs.)
688-12 3/4" 1-1/16"-12 0.2765
688-16 1" 1-5/16"-12 0.3700
688-20 1-1/4" 1-5/8"-12 0.8400
688-24 1-1/2" 1-7/8"-12 1.1400
688-32 2" 2-1/2"-12 2.0000
