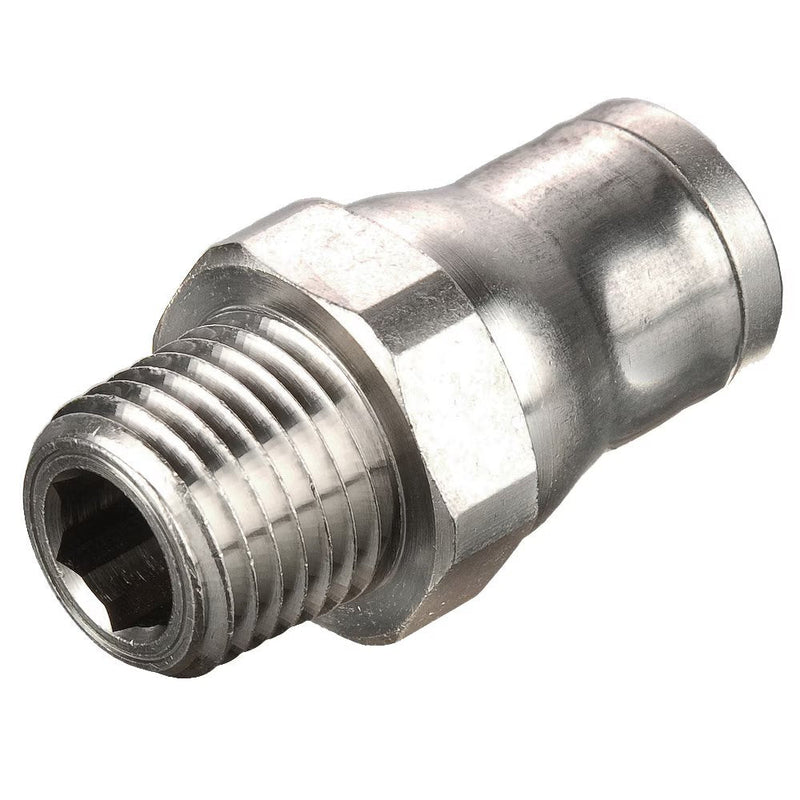

68PLM-4M-4R by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 4 mm Connector x 1/8" Male BSPT Threads | 11.00 mm Height | Straight | Electroless Nickel-Plated Brass | Pack of 10

68PLM-4M-4R by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 4 mm Connector x 1/8" Male BSPT Threads | 11.00 mm Height | Straight | Electroless Nickel-Plated Brass | Pack of 10

Save $43.90 Save $43.90
$109.75
$109.75 - $109.75
$109.75
$65.85
$65.85 - $65.85
$65.85

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:68PLM Male Connector Metric Tube to BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: 68PLM-4M-4R Parker | 10 |
Series: 68PLM Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size BSPT F1 F2 H K
68PLM-4M-2R 4 mm 1/8" 10 mm 3 mm 15.00 mm 11.00 mm
68PLM-4M-4R 4 mm 1/4" 14 mm 3 mm 15.00 mm 15.00 mm
68PLM-6M-2R 6 mm 1/8" 13 mm 4 mm 17.00 mm 14.00 mm
68PLM-6M-4R 6 mm 1/4" 14 mm 4 mm 17.00 mm 15.00 mm
68PLM-8M-2R 8 mm 1/8" 15 mm 5 mm 19.00 mm 16.00 mm
68PLM-8M-4R 8 mm 1/4" 15 mm 6 mm 18.00 mm 16.00 mm
68PLM-8M-6R 8 mm 3/8" 17 mm 6 mm 18.50 mm 18.50 mm
68PLM-10M-4R 10 mm 1/4" 18 mm 7 mm 23.00 mm 19.50 mm
68PLM-10M-6R 10 mm 3/8" 18 mm 8 mm 22.50 mm 19.500 mm
68PLM-10M-8R 10 mm 1/2" 22 mm 8 mm 22.50 mm 24.00 mm
68PLM-12M-4R 12 mm 1/4" 20 mm 7 mm 25.50 mm 22.00 mm
68PLM-12M-6R 12 mm 3/8" 20 mm 9 mm 24.00 mm 22.00 mm
68PLM-12M-8R 12 mm 1/2" 22 mm 10 mm 23.00 mm 24.00 mm
68PLM-14M-6R 14 mm 3/8" 22 mm 9 mm 27.00 mm 24.00 mm
68PLM-14M-8R 14 mm 1/2" 24 mm 11 mm 26.00 mm 26.00 mm
