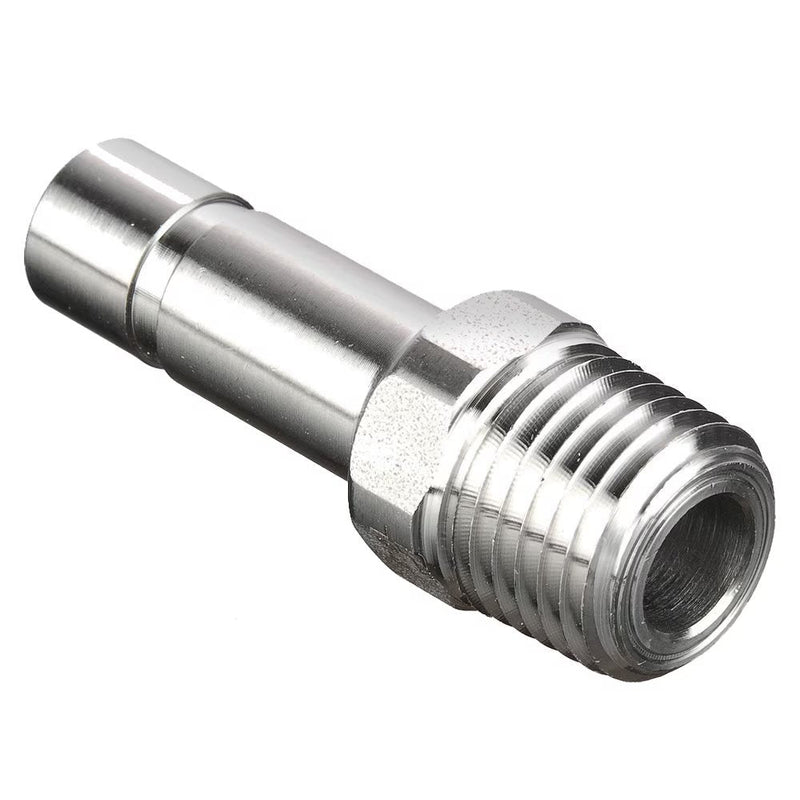

68PLSSP-8-8 by Parker | Prestolok PLS Push-to-Connect Fittings | 1/2" Standpipe x 1/2" Male NPT Threads | .87" Height | .87" Width | Straight | Stainless Steel | Pack of 5

68PLSSP-8-8 by Parker | Prestolok PLS Push-to-Connect Fittings | 1/2" Standpipe x 1/2" Male NPT Threads | .87" Height | .87" Width | Straight | Stainless Steel | Pack of 5

Save $199.11 Save $199.11
$497.78
$497.78 - $497.78
$497.78
$298.67
$298.67 - $298.67
$298.67

by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:68PLSSP Male Standpipe - Inch Tube to NPT

Package Quantity: 5 Units

Specifications for Variant SKU: 68PLSSP-8-8 Parker | 5 |
Series: 68PLSSP Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • Stainless steel 316L collet
  • Stainless steel 316L body
  • FKM seal
  • Stainless steel 316L backup washer
  • Chemical, corrosion, and abrasion resistance
  • Hygienic design reduces retention zones for
  • Easy cleaning
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Petrochemical
  • Life Science
  • Pulp and Paper
  • Food Processing
  • Wash Down
Compatible Media:
  • Food Fluids
  • Chemicals
  • Cleaning Agents
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLS
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Stainless Steel (grooved)
  • Copper (grooved)
  • FEP
Part Number Tube Size NPT F H
68PLSSP-4-2 1/4" 1/8" .39" 1.02"
68PLSSP-4-4 1/4" 1/4" .55" 1.06"
68PLSSP-6-4 3/8" 1/4" .75" 1.26"
68PLSSP-6-6 3/8" 3/8" .75" 1.26"
68PLSSP-8-4 1/2" 1/4" .75" 1.42"
68PLSSP-8-6 1/2" 3/8" .75" 1.46"
68PLSSP-8-8 1/2" 1/2" .87" 1.46"
