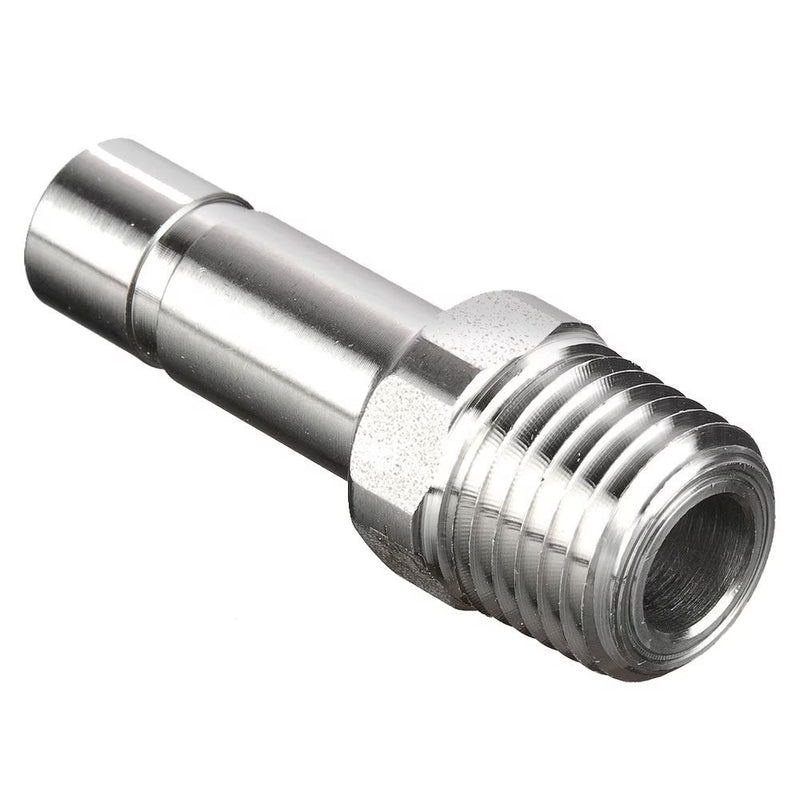

68PLSSP-4-4 by Parker | Prestolok PLS Push-to-Connect Fittings | 1/4" Standpipe x 1/4" Male NPT Threads | .55" Height | .55" Width | Straight | Stainless Steel | Pack of 5

68PLSSP-4-4 by Parker | Prestolok PLS Push-to-Connect Fittings | 1/4" Standpipe x 1/4" Male NPT Threads | .55" Height | .55" Width | Straight | Stainless Steel | Pack of 5

Save $31.11 Save $31.11
$260.04
$260.04 - $260.04
$260.04
$228.93
$228.93 - $228.93
$228.93

by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:68PLSSP Male Standpipe - Inch Tube to NPT

Package Quantity: 5 Units

Specifications for Variant SKU: 68PLSSP-4-4 Parker | 5 |
Series: 68PLSSP Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • Stainless steel 316L collet
  • Stainless steel 316L body
  • FKM seal
  • Stainless steel 316L backup washer
  • Chemical, corrosion, and abrasion resistance
  • Hygienic design reduces retention zones for
  • Easy cleaning
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Petrochemical
  • Life Science
  • Pulp and Paper
  • Food Processing
  • Wash Down
Compatible Media:
  • Food Fluids
  • Chemicals
  • Cleaning Agents
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLS
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Stainless Steel (grooved)
  • Copper (grooved)
  • FEP
Part Number Tube Size NPT F H
68PLSSP-4-2 1/4" 1/8" .39" 1.02"
68PLSSP-4-4 1/4" 1/4" .55" 1.06"
68PLSSP-6-6 3/8" 3/8" .75" 1.26"
68PLSSP-8-6 1/2" 3/8" .75" 1.46"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
