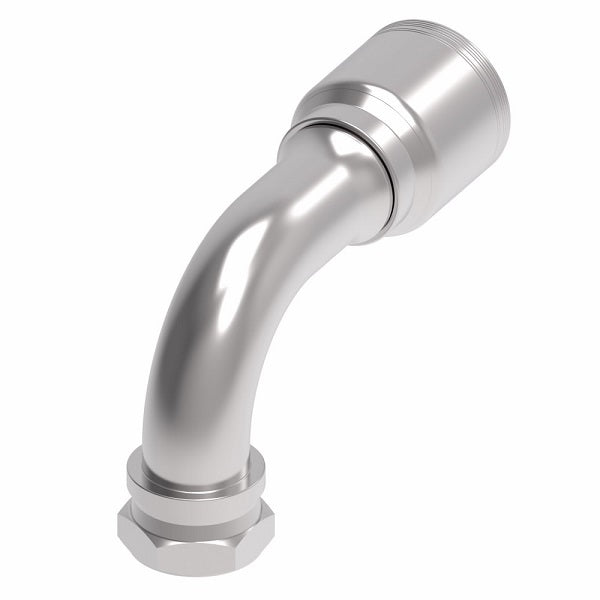

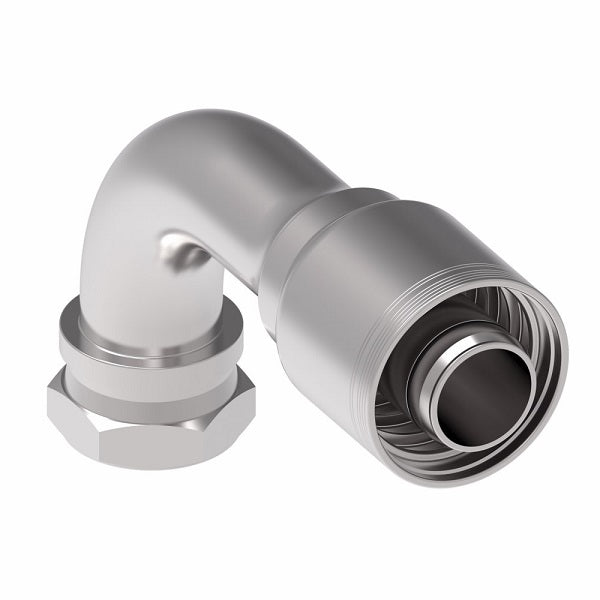

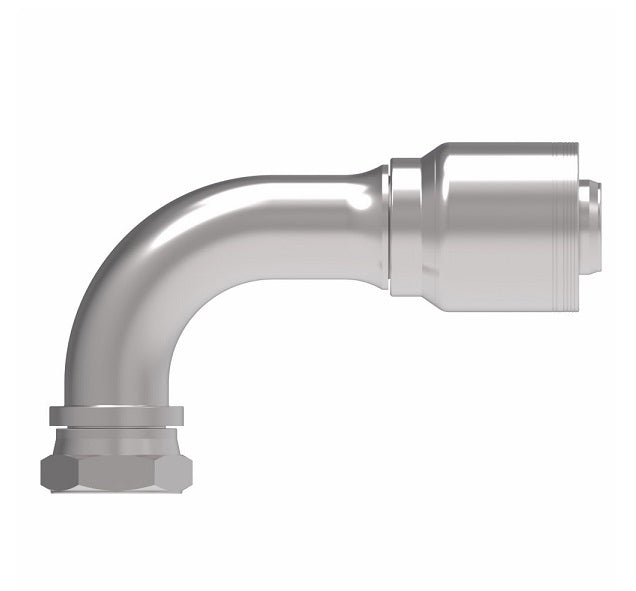

6S32BFB32 Aeroquip by Danfoss | 6 Wire 6S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -32 Female BSPP Swivel x -32 Hose Barb | Steel

Original price $247.41 - Original price $247.41
Original price
$247.41
$247.41 - $247.41
Current price $247.41

Aeroquip® by Danfoss
6 Wire 6S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BFB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 6S32BFB32 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 2in Female BSPP, 2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Note:
  • "G" as part of thread size is ISO designation for parellel thread.
Steel
Part Number
Terminal End Hose Size Thread A D E&Oslash H Hex 1

Dash Size DN Dash Size
6S24BFB24 -24 38 -24 G 1-1/2" 8.07" 5.00" 1.22" 3.88" 55mm
6S32BFB32 -32 51 -32 G 2" 9.67" 6.60" 1.66" 4.93" 70mm
