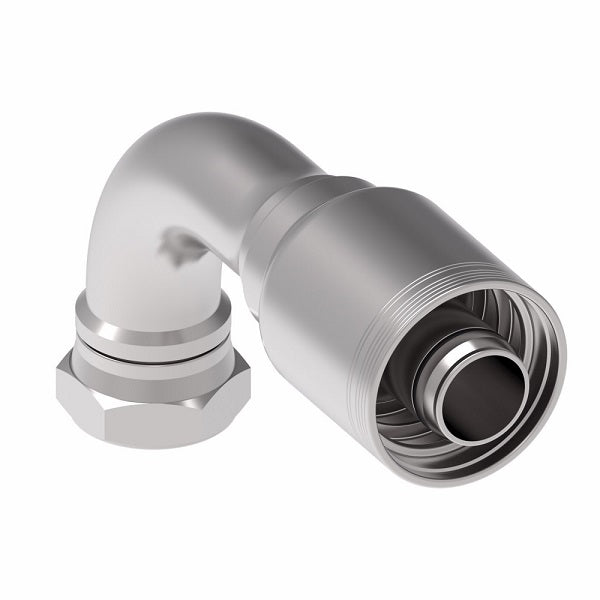

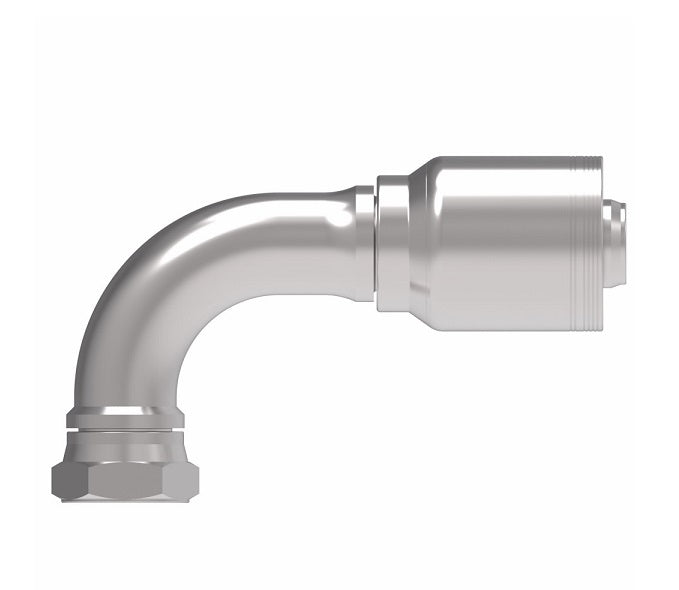

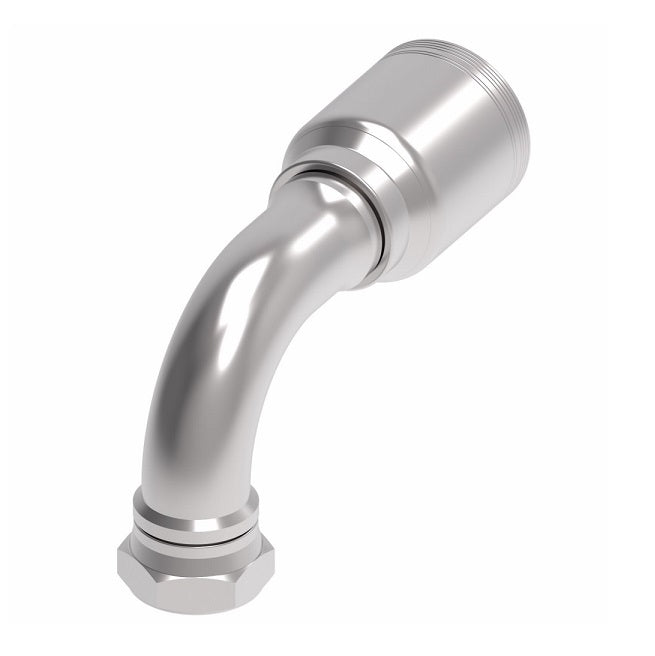

6S24BFB24 Aeroquip by Danfoss | 6 Wire 6S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -24 Female BSPP Swivel x -24 Hose Barb | Steel

6S24BFB24 Aeroquip by Danfoss | 6 Wire 6S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -24 Female BSPP Swivel x -24 Hose Barb | Steel

Name: 6S24BFB24 Aeroquip by Danfoss | 6 Wire 6S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -24 Female BSPP Swivel x -24 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6S24BFB24 Danfoss
Price: 201.27 USD
Availability: InStock

$201.27 - $201.27

$201.27

$201.27 - $201.27

$201.27

Aeroquip® by Danfoss
6 Wire 6S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BFB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 6S24BFB24 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/2in Female BSPP, 1-1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
"G" as part of thread size is ISO designation for parellel thread.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	H	Hex 1
6S24BFB24	-24	38	-24	G 1-1/2"	8.07"	5.00"	1.22"	3.88"	55mm
6S32BFB32	-32	51	-32	G 2"	9.67"	6.60"	1.66"	4.93"	70mm
