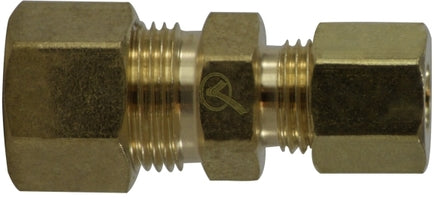

700082-1006 Midland Lead Free Compression Fitting - Reducing Union - 5/8" Tube OD x 3/8" Tube OD - Brass

700082-1006 by Midland | Lead Free Compression Fitting | Reducing Union | 5/8" Tube OD x 3/8" Tube OD | Brass | Replaces: 18082LF / 18-082LF

Save $0.70

$6.26

$6.26 - $6.26

$6.26

$5.56

$5.56 - $5.56

$5.56

Midland Industries
Lead Free Brass Fitting - Compression Fitting - Reducing Union

Inventory @ Manufacturers Warehouse: 3530 Units

Quantity

Specifications for Variant SKU: 700082-1006 Midland
Shape (Orientation):	Straight
Ends Configuration:	5/8in Tube Compression, 3/8in Tube Compression
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Water, Gasoline, Oil, and Vacuum Lines.	Used With:	Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert)
Temperature Range:	-40°F to +250°F	Conformance:	Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free:	Yes. Lead Free Info (PDF)

Features:
Three piece construction- nut, sleeve (or ferrule) and body. Easy to disassemble, no flaring tool required.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"
Thread Size	5/16-24	3/8-24	7/16-24	1/2-24	9/16-24	5/8-24	11/16-20	13/16-18	1-18	1-1/8-18

Crossover Series:
LF62R	62-R

Part Number	Tube OD x Tube OD
700082-0402	1/4" x 1/8"
700082-0403	1/4" x 3/16"
700082-0504	5/16" x 1/4"
700082-0604	3/8" x 1/4"
700082-0605	3/8" x 5/16"
700082-0806	1/2" x 3/8"
700082-1006	5/8" x 3/8"
700082-1008	5/8" x 1/2"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
