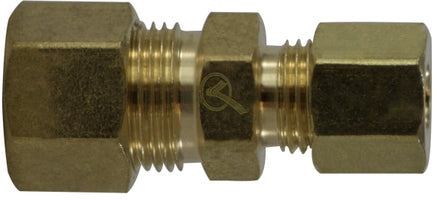

700082-0403 Midland Lead Free Compression Fitting - Reducing Union - 1/4" Tube OD x 3/16" Tube OD - Brass

700082-0403 by Midland | Lead Free Compression Fitting | Reducing Union | 1/4" Tube OD x 3/16" Tube OD | Brass | Replaces: 18077LF / 18-077LF

Save $1.89

$4.73

$4.73 - $4.73

$4.73

$2.84

$2.84 - $2.84

$2.84

Midland Industries
Lead Free Brass Fitting - Compression Fitting - Reducing Union

Inventory @ Manufacturers Warehouse: 707 Units

Specifications for Variant SKU: 700082-0403 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Tube Compression, 3/16in Tube Compression
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Water, Gasoline, Oil, and Vacuum Lines.	Used With:	Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert)
Temperature Range:	-40°F to +250°F	Conformance:	Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free:	Yes. Lead Free Info (PDF)

Features:
Three piece construction- nut, sleeve (or ferrule) and body. Easy to disassemble, no flaring tool required.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"
Thread Size	5/16-24	3/8-24	7/16-24	1/2-24	9/16-24	5/8-24	11/16-20	13/16-18	1-18	1-1/8-18

Crossover Series:
LF62R	62-R

Part Number	Tube OD x Tube OD
700082-0402	1/4" x 1/8"
700082-0403	1/4" x 3/16"
700082-0504	5/16" x 1/4"
700082-0604	3/8" x 1/4"
700082-0605	3/8" x 5/16"
700082-0806	1/2" x 3/8"
700082-1006	5/8" x 3/8"
700082-1008	5/8" x 1/2"
