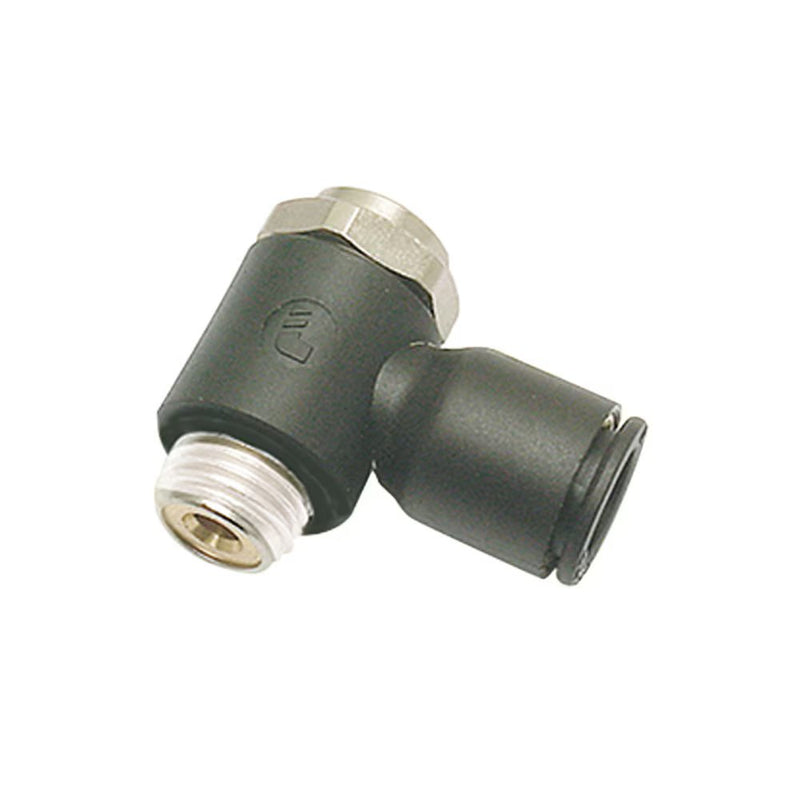

7016 04 11 by Parker | Legris Knobless Compact Flow Control - Meter In | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 13 mm Hex | 90° Elbow | Nylon

7016 04 11 by Parker | Legris Knobless Compact Flow Control - Meter In | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 13mm Hex | 90° Elbow | Nylon | Pack of 10

Save $108.62 Save $108.62
$271.55
$271.55 - $271.55
$271.55
$162.93
$162.93 - $162.93
$162.93

by Parker Hannifin
Compact Flow Controls:7015/7016 - knobless compact flow control fractional inch tube to NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 7016 04 11 Parker | 10 |
Series: 7016 Series
Shape (Orientation): 90° Elbow
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD NPT (C) F H J L Oz
7016 04 11 5/32" 1/8" 13 mm .79" .55" .75" .60 Oz
7016 56 11 1/4" 1/8" 13 mm .79" .55" .85" .67 Oz
