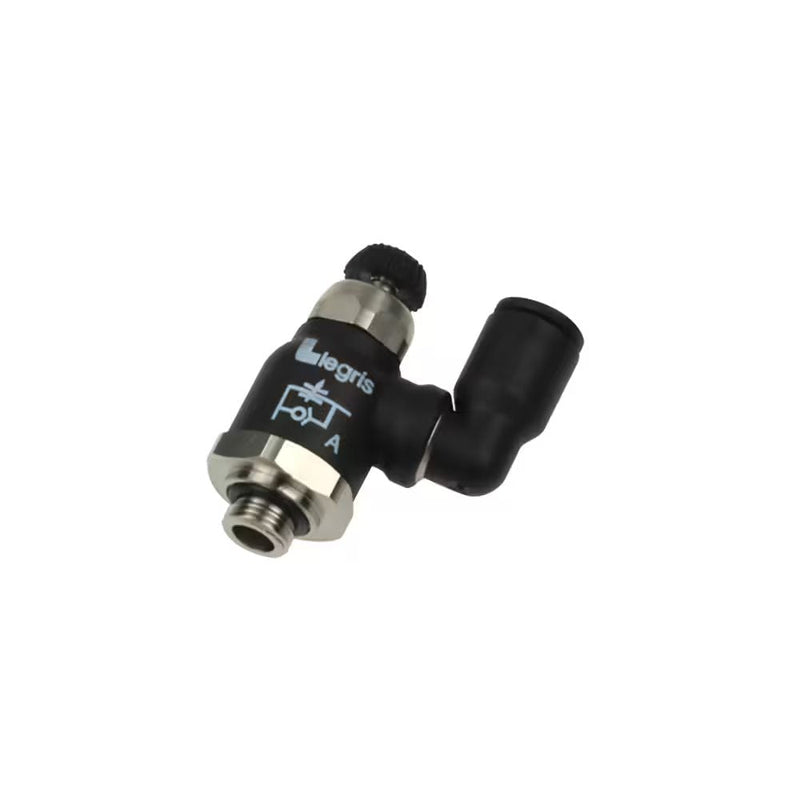

7040 12 17 by Parker | Legris Compact Flow Regulator Swivel Outlet Exhaust | 12 mm Tube Size x 3/8" Male BSPP Thread | 23 mm Hex | Multi-Directional | Polymer

7040 12 17 by Parker | Legris Compact Flow Regulator Swivel Outlet Exhaust | 12 mm Tube Size x 3/8" Male BSPP Thread | 23 mm Hex | Multi-Directional | Polymer | Pack of 10

Save $43.17 Save $43.17
$593.70
$593.70 - $593.70
$593.70
$550.53
$550.53 - $550.53
$550.53

by Parker Hannifin
Flow Control Regulators:7040 Compact Flow Regulator Swivel Outlet Exhaust, Male BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7040 12 17 Parker | 10 |
Series: 7040 Series
Shape (Orientation): Multi-Directional
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Swivel, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C F F1 G H (max) H (min) H1 H2 L Kg
7040 06 10 6 mm 1/8" 16 mm 10 mm 10.5 mm 44 mm 38 mm 16 mm 18 mm 23.5 mm .024 Kg
7040 06 13 6 mm 1/8" 16 mm 10 mm 10.5 mm 42.5 mm 36.5 mm 16 mm 16.5 mm 23.5 mm .023 Kg
7040 08 10 8 mm 1/8" 19 mm 14 mm 13.5 mm 48 mm 41.5 mm 23 mm 19 mm 28 mm .037 Kg
7040 08 13 8 mm 1/8" 19 mm 14 mm 13.5 mm 48 mm 41.5 mm 23 mm 19.5 mm 28 mm .039 Kg
7040 08 17 8 mm 3/8" 19 mm 14 mm 13.5 mm 48 mm 41.5 mm 23 mm 17.5 mm 28 mm .020 Kg
7040 10 13 10 mm 1/4" 23 mm 17 mm 16 mm 53.5 mm 45.5 mm 26.5 mm 21 mm 35 mm .051 Kg
7040 10 17 10 mm 3/8" 23 mm 17 mm 16 mm 54 mm 45.5 mm 26.5 mm 21.5 mm 35 mm .063 Kg
7040 12 17 12 mm 3/8" 23 mm 17 mm 19 mm 54 mm 45.5 mm 30.5 mm 21.5 mm 38 mm .066 Kg
7040 12 21 12 mm 1/2" 24 mm 17 mm 19 mm 54 mm 45.5 mm 30.5 mm 21 mm 38 mm .071 Kg
