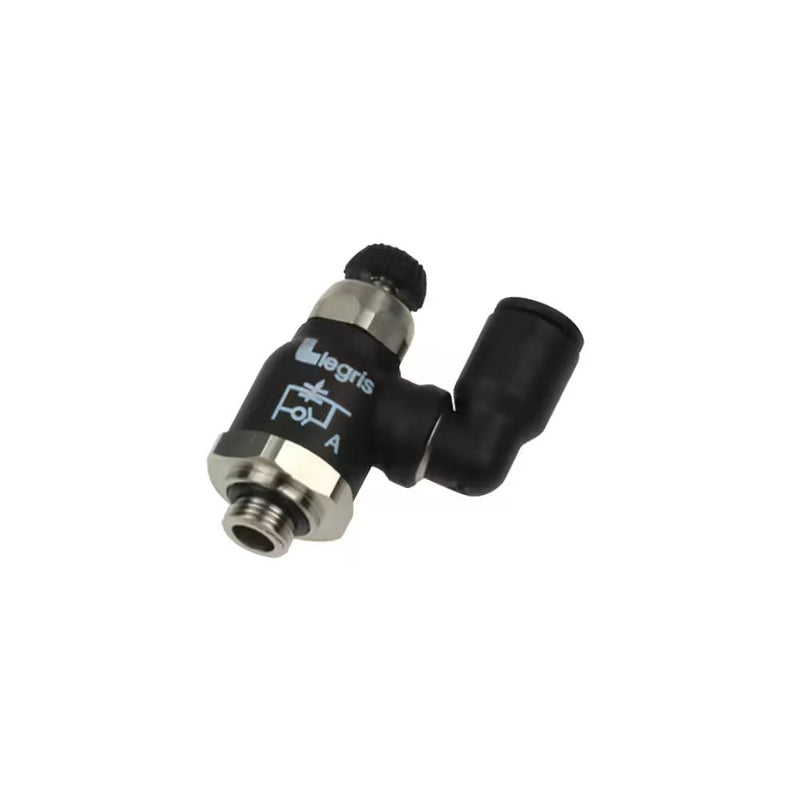

7040 10 17 by Parker | Legris Compact Flow Regulator Swivel Outlet Exhaust | 10mm Tube Size x 3/8" Male BSPP Thread | 23mm Hex | Multi-Directional | Polymer | Pack of 10

Save $66.35

$613.15

$613.15 - $613.15

$613.15

$546.80

$546.80 - $546.80

$546.80

by Parker Hannifin
Flow Control Regulators:7040 Compact Flow Regulator Swivel Outlet Exhaust, Male BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7040 10 17 Parker \| 10 \|
Series:	7040 Series
Shape (Orientation):	Multi-Directional
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Swivel, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	C	F	F1	G	H (max)	H (min)	H1	H2	L	Kg
7040 06 10	6 mm	1/8"	16 mm	10 mm	10.5 mm	44 mm	38 mm	16 mm	18 mm	23.5 mm	.024 Kg
7040 06 13	6 mm	1/8"	16 mm	10 mm	10.5 mm	42.5 mm	36.5 mm	16 mm	16.5 mm	23.5 mm	.023 Kg
7040 08 10	8 mm	1/8"	19 mm	14 mm	13.5 mm	48 mm	41.5 mm	23 mm	19 mm	28 mm	.037 Kg
7040 08 13	8 mm	1/8"	19 mm	14 mm	13.5 mm	48 mm	41.5 mm	23 mm	19.5 mm	28 mm	.039 Kg
7040 08 17	8 mm	3/8"	19 mm	14 mm	13.5 mm	48 mm	41.5 mm	23 mm	17.5 mm	28 mm	.020 Kg
7040 10 13	10 mm	1/4"	23 mm	17 mm	16 mm	53.5 mm	45.5 mm	26.5 mm	21 mm	35 mm	.051 Kg
7040 10 17	10 mm	3/8"	23 mm	17 mm	16 mm	54 mm	45.5 mm	26.5 mm	21.5 mm	35 mm	.063 Kg
7040 12 17	12 mm	3/8"	23 mm	17 mm	19 mm	54 mm	45.5 mm	30.5 mm	21.5 mm	38 mm	.066 Kg
7040 12 21	12 mm	1/2"	24 mm	17 mm	19 mm	54 mm	45.5 mm	30.5 mm	21 mm	38 mm	.071 Kg
