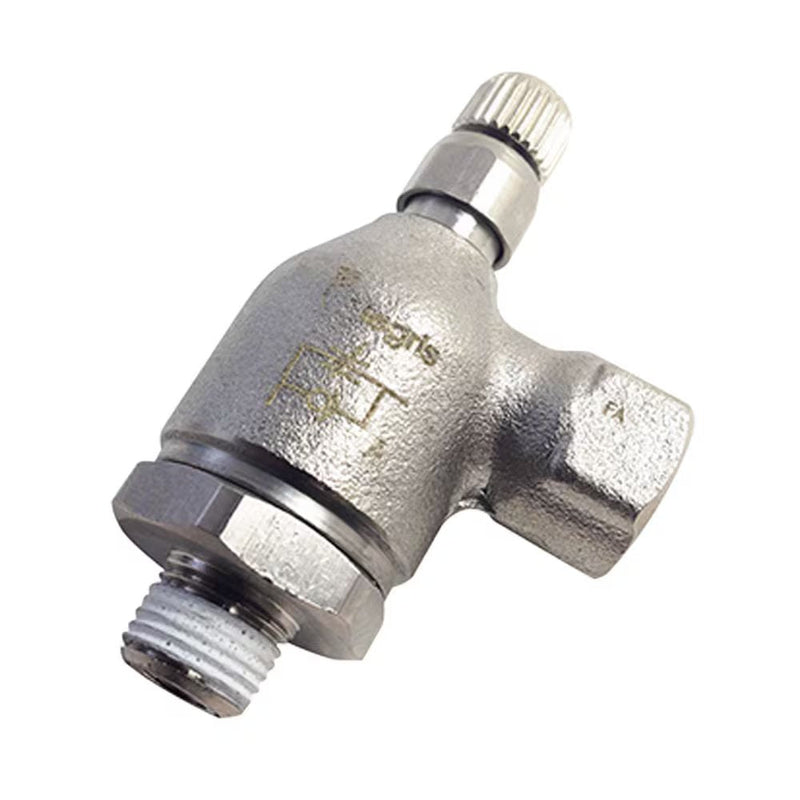

7115 14 14 by Parker | Legris Metal Flow Control | 1/4" Male NPT Thread x 1/4" Female NPT Thread | 19 mm Hex (F) | 14 mm Hex (F1) | 90° Elbow | Nickel-Plated Brass | Pack of 5

7115 14 14 by Parker | Legris Metal Flow Control | 1/4" Male NPT Thread x 1/4" Female NPT Thread | 19 mm Hex (F) | 14 mm Hex (F1) | 90° Elbow | Nickel-Plated Brass | Pack of 5

Save $14.97 Save $14.97
$205.90
$205.90 - $205.90
$205.90
$190.93
$190.93 - $190.93
$190.93

by Parker Hannifin
Metal Flow Controls:7115 - threaded port meter out metal flow control NPT

Package Quantity: 5 Units

Specifications for Variant SKU: 7115 14 14 Parker | 5 |
Series: 7115 Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Electroless nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Textile
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 32° to 158° F (0° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number NPT (C) F F1 H (min) H (max) L Oz
7115 11 11 1/8" 19 mm 10 mm 1.79" 2.01" .89" 2.75 Oz
7115 14 14 1/4" 19 mm 14 mm 1.91" 2.11" 1.28" 3.90 Oz
7115 18 18 1/8" 25 mm 17 mm 2.15" 2.40" 1.36" 7.25 Oz
7115 22 22 1/2" 25 mm 17 mm 2.15" 2.40" 1.50" 7.64 Oz
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
