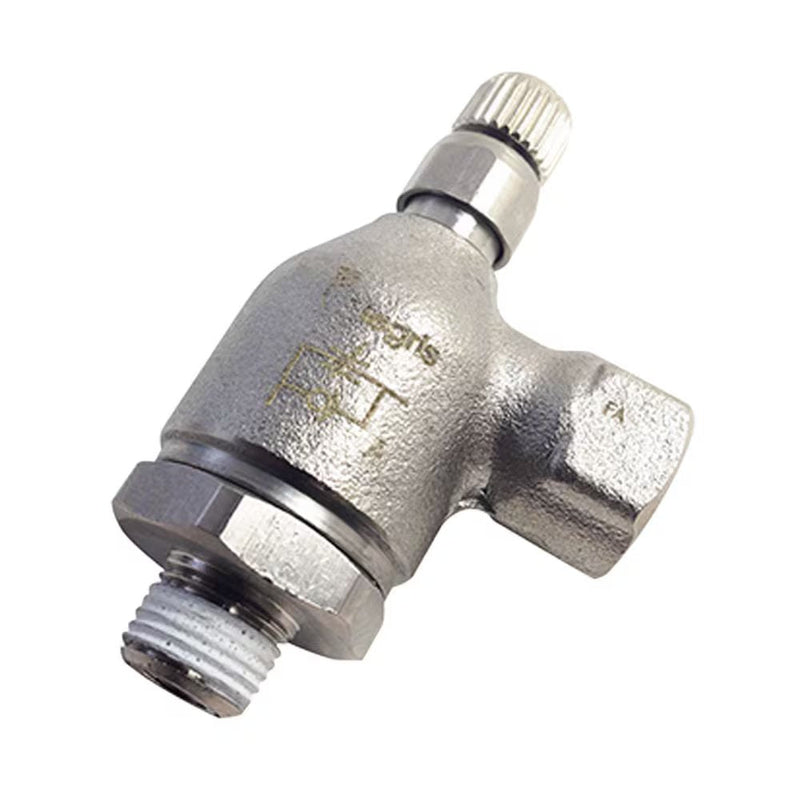

7115 18 18 by Parker | Legris Metal Flow Control | 3/8" Male NPT Thread x 3/8" Female NPT Thread | 25 mm Hex (F) | 17 mm Hex (F1) | 90° Elbow | Nickel-Plated Brass

Save $3.97

$54.56

$54.56 - $54.56

$54.56

$50.59

$50.59 - $50.59

$50.59

by Parker Hannifin
Metal Flow Controls:7115 - threaded port meter out metal flow control NPT

Quantity

Specifications for Variant SKU: 7115 18 18 Parker
Series:	7115 Series
Shape (Orientation):	90° Elbow
Material(s):	Brass, Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Product Features:	Treated brass body Stainless steel gripping ring Electroless nickel-plated brass adjustment screw Nickel-plated brass locking nut Nickel-plated threads Nitrile D-Seal Silicone-Free
Markets:	Factory/Process Automation Petrochemical Automotive Process
Applications:	Robotics Packaging Textile
Pressure Range	14.5 to 145 psi (1 to 10 bar)
Temperature Range	32° to 158° F (0° to 70° C)
Compatible Tubing	Semi-Rigid Nylon Polyurethane 95 Durometer Shore A Fluoropolymer


Part Number	NPT (C)	F	F1	H (min)	H (max)	L	Oz
7115 11 11	1/8"	19 mm	10 mm	1.79"	2.01"	.89"	2.75 Oz
7115 14 14	1/4"	19 mm	14 mm	1.91"	2.11"	1.28"	3.90 Oz
7115 18 18	1/8"	25 mm	17 mm	2.15"	2.40"	1.36"	7.25 Oz
7115 22 22	1/2"	25 mm	17 mm	2.15"	2.40"	1.50"	7.64 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
