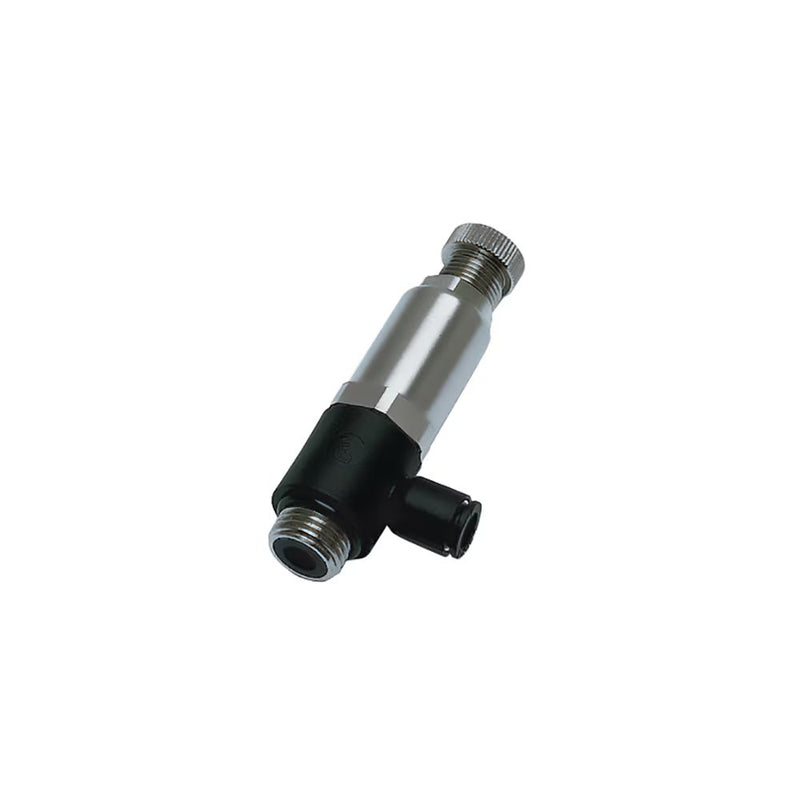

7300 04 10 by Parker | Legris Pressure Regulator | 4 mm Tube Size x 1/8" Male BSPP Thread | 17 mm Hex | 69.5 mm Length | Banjo | Polymer

Save $4.56

$62.65

$62.65 - $62.65

$62.65

$58.09

$58.09 - $58.09

$58.09

by Parker Hannifin
Pressure Regulator Fittings:7300 Pressure Regulator, Male BSPP Thread

Quantity

Specifications for Variant SKU: 7300 04 10 Parker
Series:	7300 Series
Shape (Orientation):	Banjo
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics (7300):	Compatible Fluids: Compressed air Working Pressure: Upstream pressure: 1 to 16 bar Downstream pressure: 1 to 8 bar Working Temperature: -10°C to +70°C
Advantages:	Lockable adjustment possible of the setpoint Output pressure adjustment options marked on the screw Installation in a manifold allows optimum output pressures to be delivered specific parts of the circuit Designed for applications where cylinder force needs to be controlled: marking, sleeving, crimping cylinders etc.
Regulations:	RoHS PED REACH
Component Materials:	Body: Technical polymer Screw: Nickel-plated brass Seal: Nitrile


Part Number	ØD	C	E	F1	F2	G1	G2	H (max)	L1	L2	Kg
7300 04 10	4 mm	1/8"	4.5 mm	17 mm	13 mm	14 mm	17 mm	65 mm	7 mm	18.5 mm	.047 Kg
7300 06 10	6 mm	1/8"	4.5 mm	17 mm	13 mm	14 mm	17 mm	65 mm	7 mm	20 mm	.047 Kg
7300 06 13	6 mm	1/4"	7.5 mm	17 mm	13 mm	14 mm	17 mm	74.5 mm	9.5 mm	22 mm	.065 Kg
7300 08 10	8 mm	1/8"	4.5 mm	17 mm	13 mm	14 mm	17 mm	65 mm	7 mm	25 mm	.048 Kg
7300 08 13	8 mm	1/4"	7.5 mm	17 mm	13 mm	14 mm	17 mm	74.5 mm	9.5 mm	27 mm	.066 Kg
7300 08 17	8 mm	3/8"	8.5 mm	22 mm	17 mm	18.5 mm	22 mm	84 mm	11.5 mm	28.5 mm	.122 Kg
7300 10 13	10 mm	1/4"	7.5 mm	17 mm	13 mm	14 mm	17 mm	74.5 mm	9.5 mm	29 mm	.066 Kg
7300 10 17	10 mm	3/8"	8.5 mm	22 mm	17 mm	18.5 mm	22 mm	84 mm	11.5 mm	30.5 mm	.122 Kg
