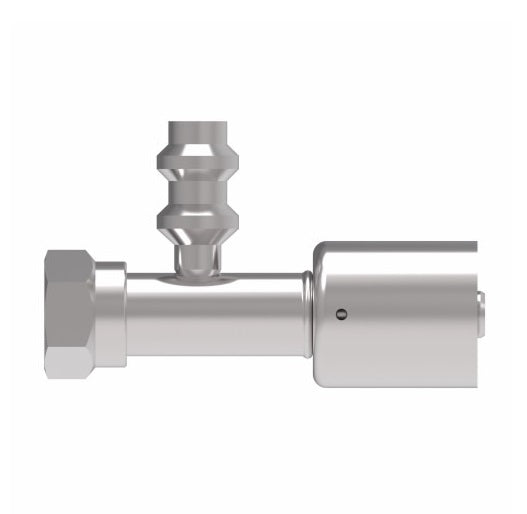

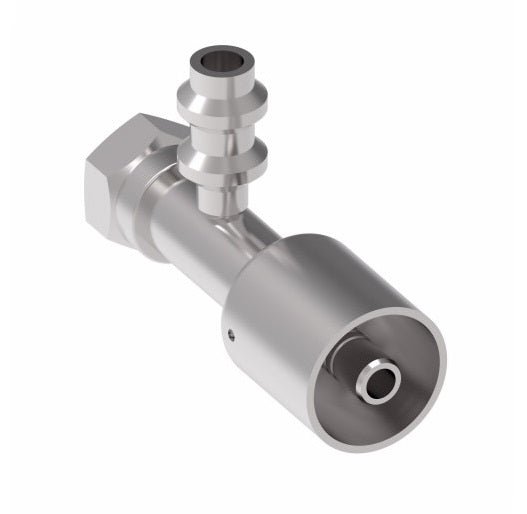

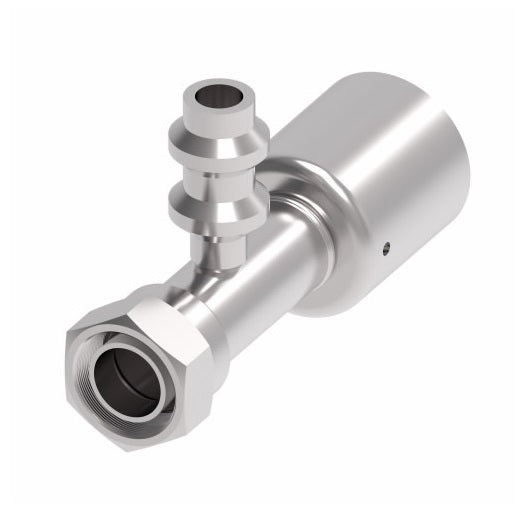

75710E-Z61 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel with R134a Low Service Port Crimp Fitting | -10 Female Bumped Tube O-Ring x -08 Hose Barb | Steel

75710E-Z61 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel with R134a Low Service Port Crimp Fitting | -10 Female Bumped Tube O-Ring x -08 Hose Barb | Steel

Name: 75710E-Z61 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel with R134a Low Service Port Crimp Fitting | -10 Female Bumped Tube O-Ring x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 75710E-Z61 Danfoss
Price: 41.53 USD
Availability: InStock

$41.53 - $41.53

$41.53

$41.53 - $41.53

$41.53

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel with R134a High Service Port Crimp Fitting - Straight

Quantity

Specifications for Variant SKU: 75710E-Z61 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Hose I.D.	Tube Size	Thread Size	Port	Length A	Run R	Hose Cut-Off Factor	Hex F
75706E-Z57	5/16"	3/8"	5/8-18	High Side Port	4.28"	1.88"	3.00"	3/4"
75708E-Z59	13/32"	1/2"	3/4-16	High Side Port	4.28"	1.88"	3.00"	7/8"
75710E-Z61	1/2"	5/8"	7/8-14	Low Side Port	4.52"	2.12"	3.25"	1-1/16"
75712E-Z61	5/8"	5/8"	7/8-14	Low Side Port	4.62"	3.05"	3.25"	1-1/16"

Note: Drawings may differ from actual parts.
