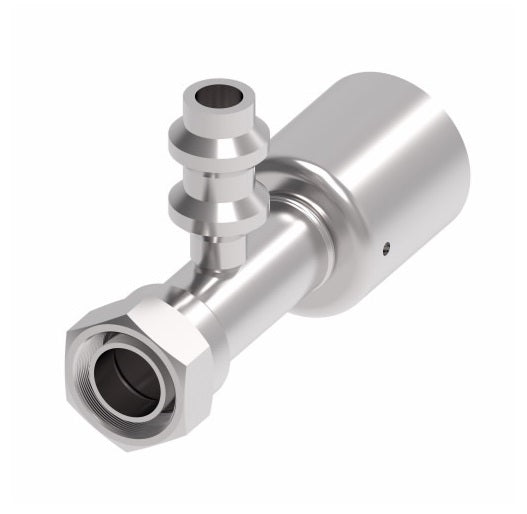

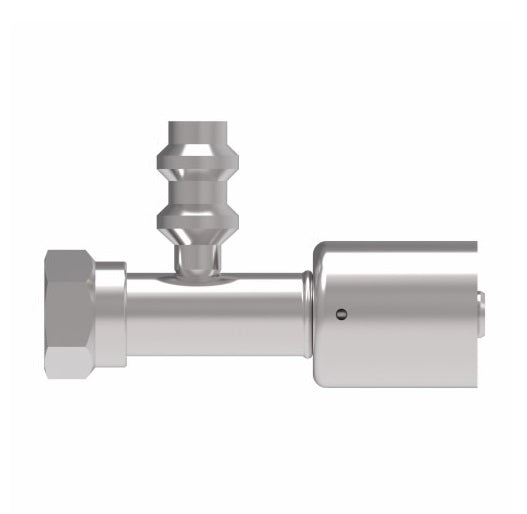

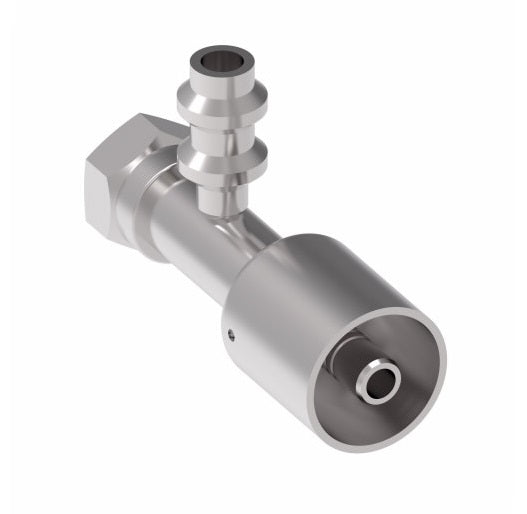

75708E-Z59 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel with R134a High Service Port Crimp Fitting | -08 Female Bumped Tube O-Ring x -08 Hose Barb | Steel
75708E-Z59 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel with R134a High Service Port Crimp Fitting | -08 Female Bumped Tube O-Ring x -08 Hose Barb | Steel
75708E-Z59 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel with R134a High Service Port Crimp Fitting | -08 Female Bumped Tube O-Ring x -08 Hose Barb | Steel
75708E-Z59 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel with R134a High Service Port Crimp Fitting | -08 Female Bumped Tube O-Ring x -08 Hose Barb | Steel

75708E-Z59 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel with R134a High Service Port Crimp Fitting | -08 Female Bumped Tube O-Ring x -08 Hose Barb | Steel

$42.17 - $42.17
$42.17
$42.17 - $42.17
$42.17

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel with R134a High Service Port Crimp Fitting - Straight
Specifications for Variant SKU: 75708E-Z59 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Port Length
A		 Run
R		 Hose Cut-Off
Factor		 Hex
F
75706E-Z57 5/16" 3/8" 5/8-18 High Side Port 4.28" 1.88" 3.00" 3/4"
75708E-Z59 13/32" 1/2" 3/4-16 High Side Port 4.28" 1.88" 3.00" 7/8"
75710E-Z61 1/2" 5/8" 7/8-14 Low Side Port 4.52" 2.12" 3.25" 1-1/16"
75712E-Z61 5/8" 5/8" 7/8-14 Low Side Port 4.62" 3.05" 3.25" 1-1/16"

Note: Drawings may differ from actual parts.
