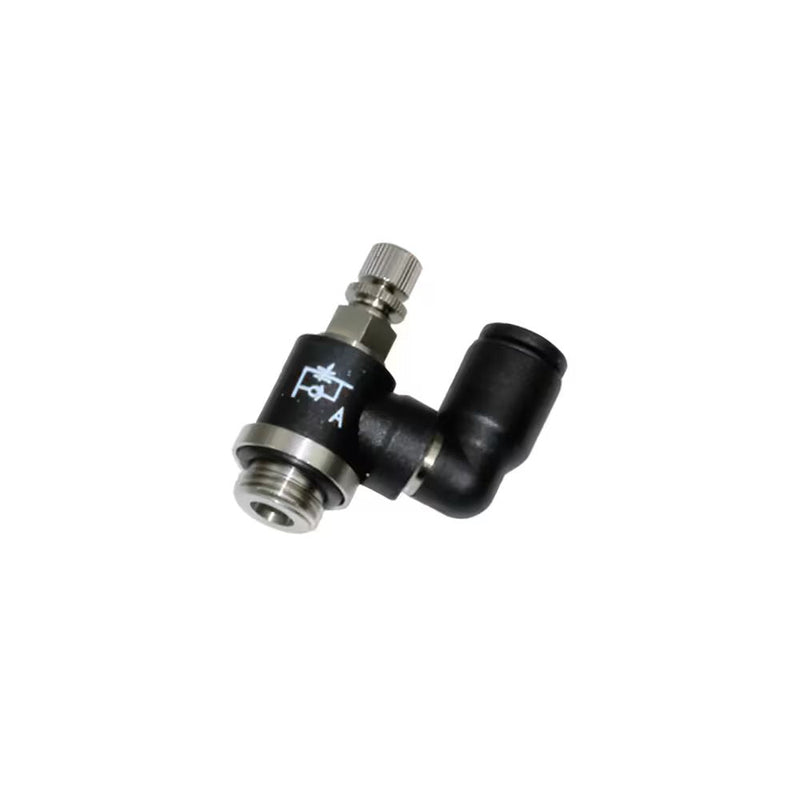

7645 04 11 by Parker | Legris Swivel Outlet Flow Control - Meter Out | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 8 mm Hex | Multi-Directional | Nylon

7645 04 11 by Parker | Legris Swivel Outlet Flow Control - Meter Out | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 8 mm Hex | Multi-Directional | Nylon | Pack of 10

$233.12 - $233.12
$233.12
$259.33
$259.33 - $259.33
$259.33

by Parker Hannifin
Flow Control – Swivel Outlet:7640/7645 - miniature swivel outlet flow control tube to NPT, UNF, or BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: 7645 04 11 Parker | 10 |
Series: 7640 Series
Shape (Orientation): Multi-Directional
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Swivel
Product Features:
  • Glass-reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass thread
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water and Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 30° to 158° F (-1° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number ØD UNF / NPT (C) F G H (min) H (max) H1 J L L1 Oz
7640 04 20 5/32" 10-32 6 mm .33" .96" 1.08" .55" .37" .73" .26" .39 Oz
7645 04 11 5/32" 1/8" 8 mm .33" 1.08" 1.20" .55" .45" .73" .33" .39 Oz
